Product Summary

The SG6961SZ is a high-performance Critical Conduction Mode PFC Controller.

Parametrics

SG6961SZ Parametrics:

Packaging   Tape & Reel (TR)
Mode Average Current
Frequency - Switching 50kHz
Current - Startup 10μA
Voltage - Supply 12 V ~ 20 V
Operating Temperature -20°C ~ 125°C
Mounting Type Surface Mount

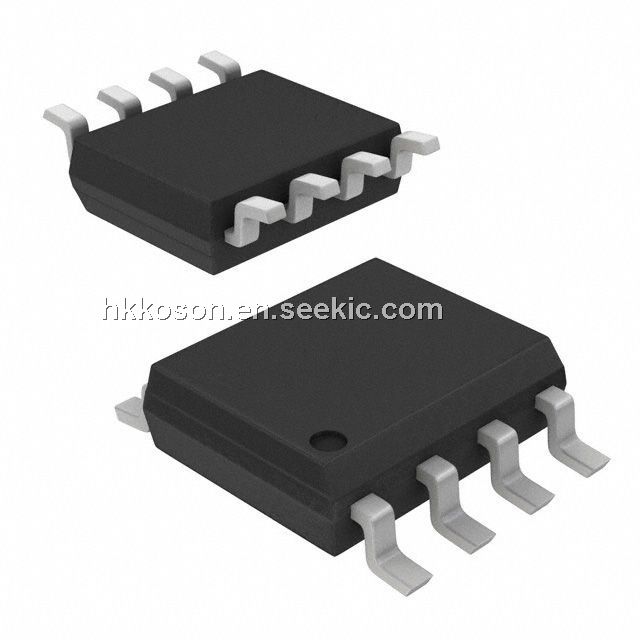

Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOP

Features

SG6961SZ Features:

  • ? Boundary Mode PFC Controller
  • ? Low Input Current THD
  • ? Controlled On-Time PWM
  • ? Zero-Current Detection
  • ? Cycle-by-cycle Current Limiting
  • ? Leading-Edge Blanking Instead of RC Filtering
  • ? Low Startup Current: 10μA (Typical)
  • ? Low Operating Current: 4.5mA  (Typical)
  • ? Feedback Open-Loop Protection
  • ? Programmable Maximum On-Time
  • ? Output Over-Voltage Clamping Protection
  • ? Clamped Gate Output Voltage 16.5V

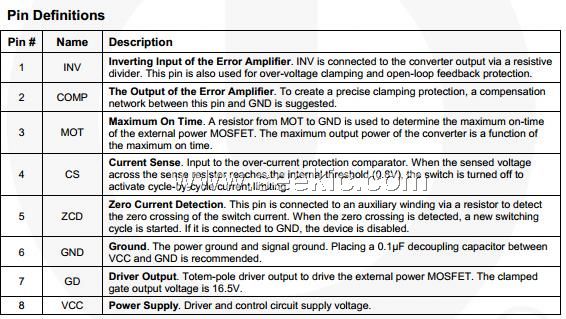

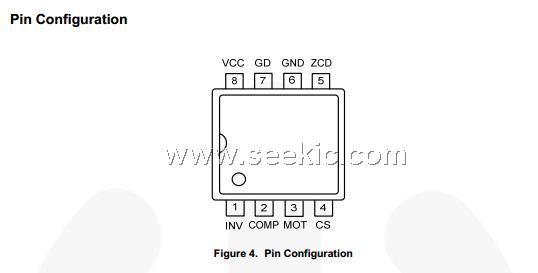

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SG6961SZ
SG6961SZ
Fairchild Semiconductor
Power Factor Correction ICs Power Factor Controller
Data Sheet
0-1: $0.43
1-25: $0.33
25-100: $0.29
100-250: $0.25
