Product Summary

The SN74LS07DR is a HEZ BUFFERS/DRIVERS WITH OPEN-COLLECTOR HIGH-VOLTAGE OUTPUTS.

Parametrics

SN74LS07DR Parametrics:

Packaging Tape & Reel (TR)
Logic Type Buffer/Line Driver, Non-Inverting with Open Collector
Number of Elements 6
Number of Bits per Element 1
Current - Output High, Low -, 40mA
Voltage - Supply 4.75 V ~ 5.25 V
Operating Temperature 0°C ~ 70°C
Mounting Type Surface Mount
Package / Case 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package 14-SOIC
Dynamic Catalog 74LS
Other Names 296-14877-2

Features

SN74LS07DR Features:


  •  Convert TTL Voltage Levels to MOS Levels
  •  High Sink-Current Capability
  •  Input Clamping Diodes Simplify System Design
  •  Open-Collector Driver for Indicator Lamps and Relays

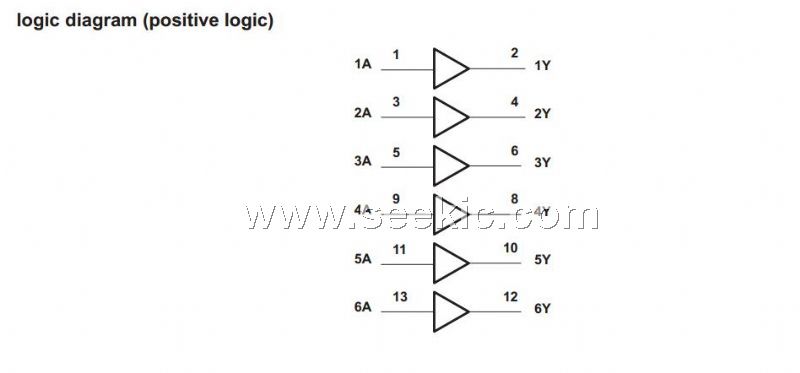

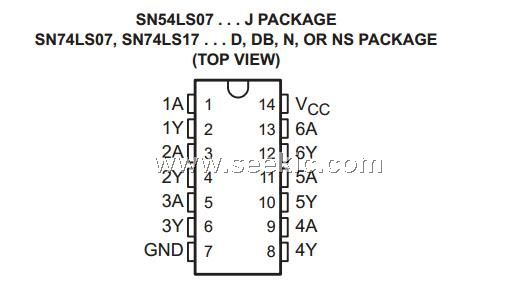

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

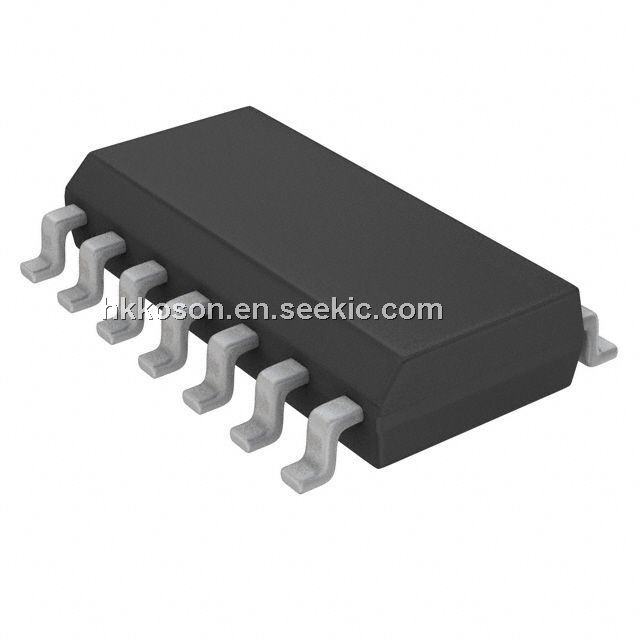

SN74LS07DR
SN74LS07DR
Texas Instruments
Buffers & Line Drivers Hex W/ OC HV Out
Data Sheet
0-1: $0.49
1-25: $0.44
25-100: $0.39
100-250: $0.34
SN74LS07DRE4
SN74LS07DRE4
Texas Instruments
Buffers & Line Drivers Hex Buffer/Driver
Data Sheet
0-1750: $0.23
1750-2000: $0.21
2000-2500: $0.21
2500-5000: $0.20
SN74LS07DRG4
SN74LS07DRG4
Texas Instruments
Buffers & Line Drivers Hex Inverter Drivers
Data Sheet
0-1750: $0.23
1750-2000: $0.21
2000-2500: $0.21
2500-5000: $0.20
