Product Summary
The SN74LVC16245ADGGR is a high-performance 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS.
Parametrics
SN74LVC16245ADGGR Parametrics:
Packaging
Tape & Reel (TR)
Logic Type
Transceiver, Non-Inverting
Number of Elements
2
Number of Bits per Element
8
Current - Output High, Low
24mA, 24mA
Voltage - Supply
1.65 V ~ 3.6 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount

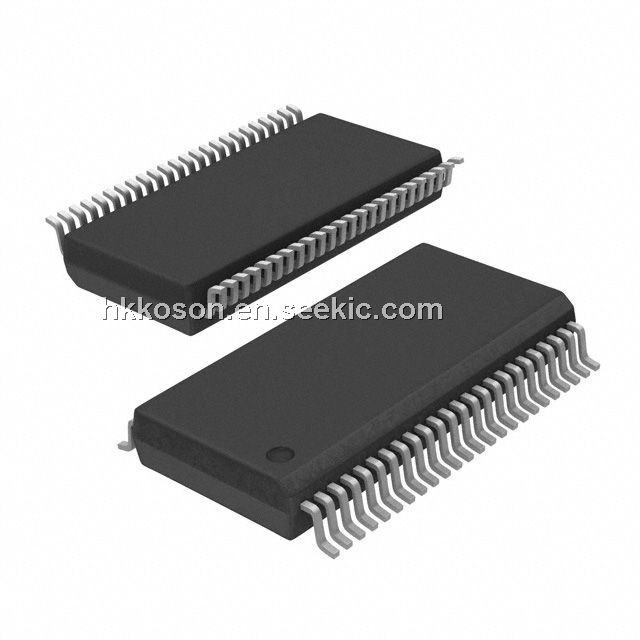

Package / Case
48-TFSOP (0.240", 6.10mm Width)
Supplier Device Package
48-TSSOP
Dynamic Catalog
74LVC
Other Names
296-1228-2
Features
SN74LVC16245ADGGR Features:
? Member of the Texas Instruments Widebus?Family
? Operates From 1.65 V to 3.6 V
? Inputs Accept Voltages to 5.5 V
? Max tpd of 4 ns at 3.3 V
? Typical VOLP (Output Ground Bounce)<0.8 V at VCC = 3.3 V, TA = 25°C
? Typical VOHV (Output VOH Undershoot)>2 V at VCC = 3.3 V, TA = 25°C
? Supports Mixed-Mode Signal Operation on AllPorts (5-V Input/Output Voltage With 3.3-V VCC)
? Ioff Supports Partial-Power-Down Mode Operation
? Latch-Up Performance Exceeds 250 mA PerJESD 17
? ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)

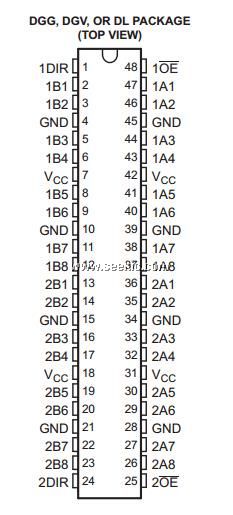

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LVC16245ADGGR |
Texas Instruments |
Bus Transceivers Tri-State 16-Bit Bus |
Data Sheet |
|
|
||||||||||||
