Product Summary

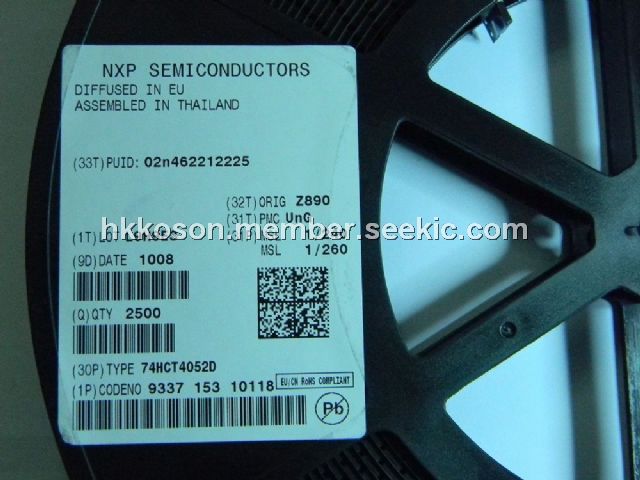

The 74HCT4052D is a high-speed Si-gate CMOS device and is pin compatible with the HEF4052B. It is specified in compliance with JEDEC standard no. 7A. The 74HCT4052D is dual 4-channel analog multiplexer or demultiplexer with common select logic. Each multiplexer has four independent inputs/outputs (pins nY0 to nY3) and a common input/output (pin nZ). The common channel select logics include two digital select inputs (pins S0 and S1) and an active LOW enable input (pin E). When pin E = LOW, one of the four switches is selected (low-impedance ON-state) with pins S0 and S1. When pin E = HIGH, all switches are in the high-impedance OFF-state, independent of pins S0 and S1.
Parametrics
Absolute maximum ratings: (1)supply voltage, VCC - GND, VCC: 4.5 to 5.5V; (2)supply voltage, VCC - VEE, VCC: 2.0 to 10.0V; (3)input voltage, VI: GND to VCC V; (4)switch voltage, VS: VEE to VCC V; (5)operating ambient temperature, Tamb: -40 to +85℃.
Features
Features: (1)Wide analog input voltage range from -5V to +5V; (2)Low ON-resistance; (3)Logic level translation: to enable 5V logic to communicate with ±5V analog signals; (4)Typical break before make built in; (5)Complies with JEDEC standard no. 7A; (6)ESD protection; (7)Specified from -40℃ to +85℃ and -40℃ to +125℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HCT4052D |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers DUAL 4CH MUX/DMUX |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HCT4052D,112 |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers DUAL 4CH MUX/DMUX |
Data Sheet |
|
|
||||||||||||
|
74HCT4052D,118 |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers DUAL 4-CHANNEL ANALOG MUX/DMUX |
Data Sheet |
|
|
||||||||||||
|
74HCT4052DB,118 |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers DUAL 4-CHANNEL ANALOG MUX/DMUX |
Data Sheet |
|
|
||||||||||||
|
74HCT4052DB,112 |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers DUAL 4CH MUX/DMUX |
Data Sheet |
|
|
||||||||||||
|
74HCT4052DB |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers DUAL 4CH MUX/DMUX |
Data Sheet |
Negotiable |
|
||||||||||||
