Product Summary
The SN75175NSR is a high-performance QUADRUPLE DIFFERENTIAL LINE RECEIVER.
Parametrics
SN75175NSR Parametrics:
Packaging
Tape & Reel (TR)
Type
Receiver
Protocol
RS422, RS423, RS485
Number of Drivers/Receivers
0/4
Duplex
-
Receiver Hysteresis
50mV
Data Rate
-
Voltage - Supply
4.75 V ~ 5.25 V
Operating Temperature
0°C ~ 70°C
Mounting Type
Surface Mount

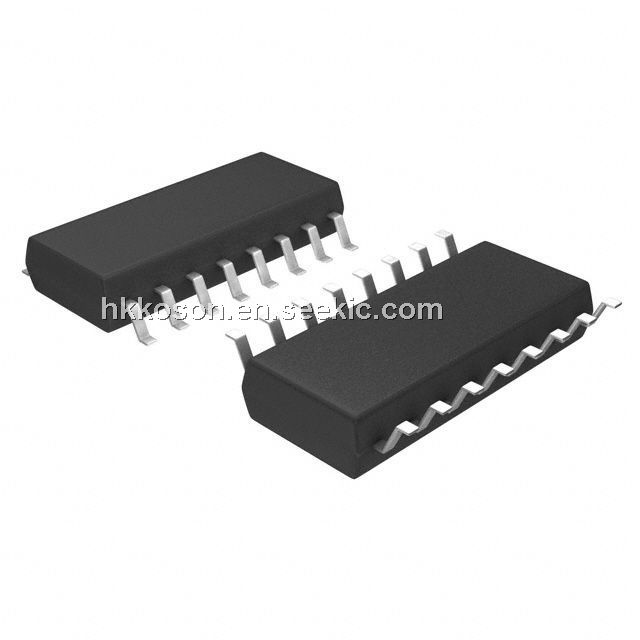

Package / Case
16-SOIC (0.209", 5.30mm Width)
Supplier Device Package
16-SO
Dynamic Catalog
RS-422, RS-423, RS-485 Line Receivers
Other Names
SN75175NSR-ND
Features
SN75175NSR Features:
- Meet or Exceed the Requirements of ANSI Standard EIA/TIA-422-B, RS-423-B, and RS-485
- Designed for Multipoint Bus Transmission on Long Bus Lines in Noisy Environments
- 3-State Outputs
- Input Sensitivity . . . ±200 mV
- Input Hysteresis . . . 50 mV Typ
- High Input Impedance . . . 12 kΩ Min
- Operate From Single 5-V Supply
- Low-Power Requirements

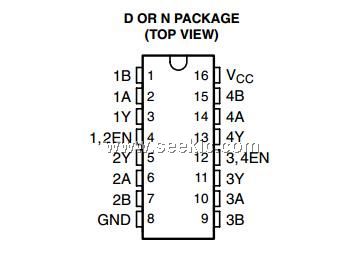

Diagrams
