Product Summary

The TAE1453A is an operational amplifier which is for universal applications having a PNP-input differential stage and an open collector output. Apart from one resistor, only active components are used. The integrated regulator provides for all parameters a large degree of independence from the supply voltage. Applications of the TAE1453A are: Amplifier, Level converter, Driver, Zero voltage switch, Comparator.

Parametrics

TAE1453A absolute maximum ratings: (1)Supply voltage VS: ± 18 V; (2)Output current IQ: 100 mA; (3)Differential input voltage VID: ± VS V; (4)Junction temperature: 150℃; (5)Storage temperature range: – 55 to 150℃; (6)Thermal resistance: 135 K/W.

Features

TAE1453A features: (1)PNP input; (2)Supply voltage range between 3 V and 36 V; (3)Low current consumption, 0.25 mA typ.; (4)Extremely large controrange; (5)Low output saturation voltage, almost independent of load current; (6)Output current up to 70 mA (100 mA max.); (7)Wide common-mode range; (8)Wide operating temperature range (TAF 1453); (9)Pin-compatible to TAA 765; (10)Open collector output.

Diagrams

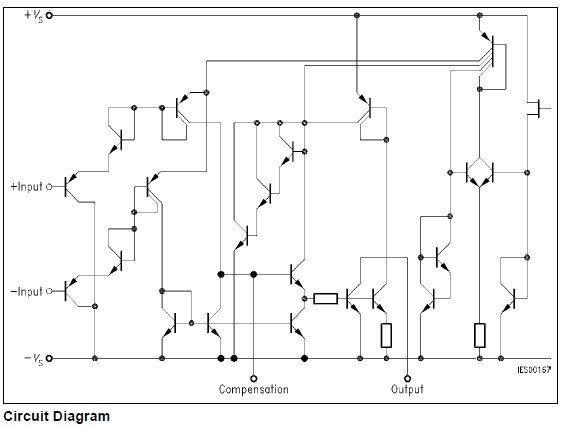

TAE1453A Connection Diagram
