Product Summary

The P2003BDG is an N-Channel Logic Level Enhancement Mode Field Effect Transistor.

Parametrics

P2003BDG absolute maximum ratings: (1)Gate-Source Voltage:±20V; (2)Continuous Drain Current:35A; (3)Pulsed Drain Current:120A; (4)Avalanche Current:15A; (5)Avalanche Energy:15mJ; (6)Repetitive Avalanche Energy:5.6mJ; (7)Power Dissipation:50W; (8)Operating Junction & Storage Temperature Range:-55 to 150℃

Features

P2003BDG features: (1)Drain-Source Breakdown Voltage:25V; (2)Gate Threshold Voltage:1.0V to 3.0V; (3)Gate-Body Leakage:±250nA; (4)Zero Gate Voltage Drain Current:25uA; (5)On-State Drain Current:35A.

Diagrams

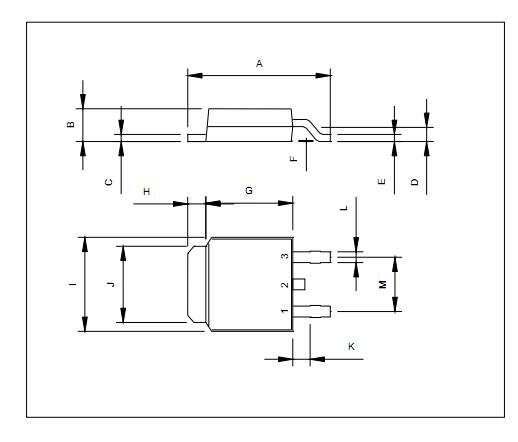

P2003BDG package dimensions
