Product Summary

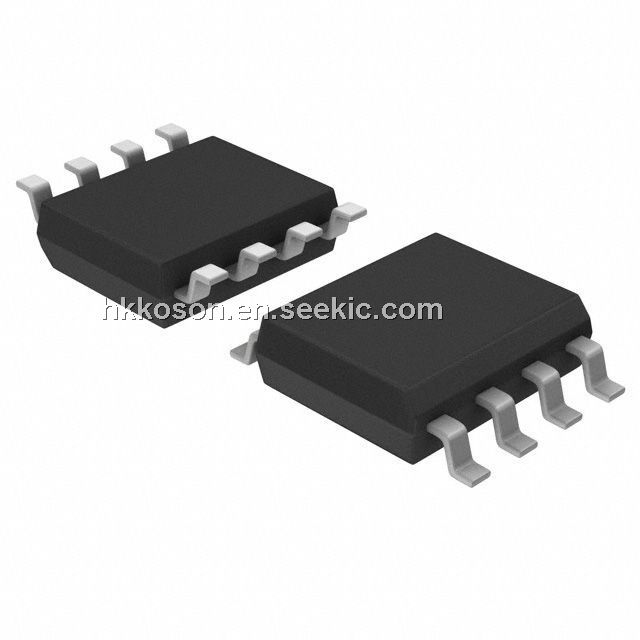

The TLC2272ACDR is a high-performance Advanced LinCMOS? RAIL-TO-RAIL OPERATIONAL AMPLIFIER.
Parametrics
TLC2272ACDR Parametrics:
Packaging
Tape & Reel (TR)
Amplifier Type
General Purpose
Number of Circuits
2
Output Type
Rail-to-Rail
Slew Rate
3.6 V/μs
Gain Bandwidth Product
2.25MHz
-3db Bandwidth
-
Current - Input Bias
1pA
Voltage - Input Offset
300μV
Current - Supply
2.4mA
Current - Output / Channel
50mA
Voltage - Supply, Single/Dual (±)
4.4 V ~ 16 V, ±2.2 V ~ 8 V
Operating Temperature
0°C ~ 70°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC
Dynamic Catalog
General Purpose
Other Names
296-1303-2
Features
TLC2272ACDR Features:
- Output Swing Includes Both Supply Rails
- Low Noise . . . 9 nV/√Hz Typ at f = 1 kHz
- Low Input Bias Current . . . 1 pA Typ
- Fully Specified for Both Single-Supply and Split-Supply Operation
- Common-Mode Input Voltage Range Includes Negative Rail
- High-Gain Bandwidth . . . 2.2 MHz Typ
- High Slew Rate . . . 3.6 V/μs Typ
- Low Input Offset Voltage 950 μV Max at TA = 25°C
- Macromodel Included
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLC2272ACDR |
Texas Instruments |
Operational Amplifiers - Op Amps Dual R/R Op Amp |
Data Sheet |
|
|
||||||||||||
|
TLC2272ACDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Advanced LinCMOS Rail-To-Rail Dual |
Data Sheet |
|
|
||||||||||||
