Product Summary
The TS912IDT is a high-performance Rail-to-rail CMOS dual operational amplifier.
Parametrics
TS912IDT Parametrics:
Packaging
Tape & Reel (TR)
Amplifier Type
General Purpose
Number of Circuits
2
Output Type
Rail-to-Rail
Slew Rate
1.3 V/μs
Gain Bandwidth Product
1.4MHz
-3db Bandwidth
-
Current - Input Bias
1pA
Voltage - Input Offset
10mV
Current - Supply
400μA
Current - Output / Channel
75mA
Voltage - Supply, Single/Dual (±)
2.7 V ~ 16 V, ±1.35 V ~ 8 V
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SO
Dynamic Catalog
General Purpose
Other Names
497-6618-2
TS912IDT-ND
Features
TS912IDT Features:
■ Rail-to-rail input and output voltage ranges
■ Single (or dual) supply operation from 2.7 to 16 V
■ Extremely low input bias current: 1 pA typ.
■ Low input offset voltage: 2 mV max.
■ Low supply current: 200 μA/amplifier (VCC = 3 V)
■ Latch-up immunity
■ ESD tolerance: 3 kV
■ Spice macromodel included in this specification

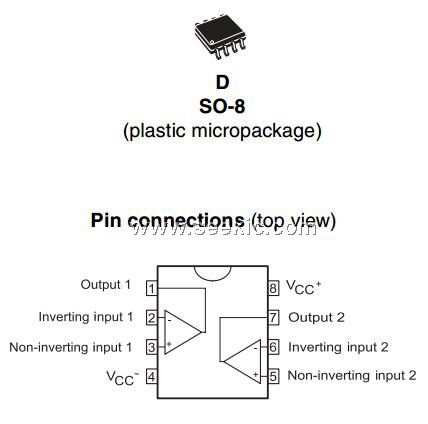

Diagrams
