Product Summary

The X9C103P is a high-performance Digitally Controlled Potentiometer (XDCP?).

Parametrics

X9C103P Parametrics:

Packaging Tube
Taps 100
Resistance (Ohms) 10k
Number of Circuits 1
Temperature Coefficient ±300 ppm/°C Typical
Memory Type Non-Volatile
Interface 3-Wire (Chip Select, Increment, Up/Down)
Voltage - Supply 4.5 V ~ 5.5 V
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole

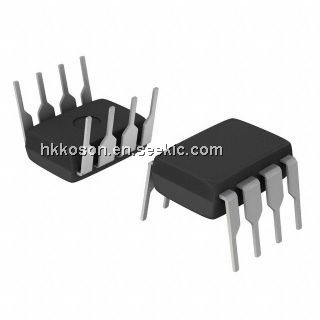

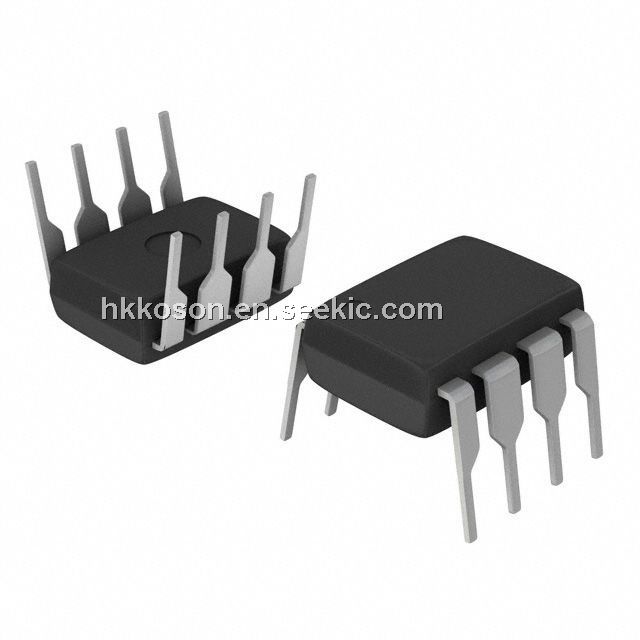

Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-PDIP

Features

X9C103P Features:

? Solid-State Potentiometer
? Three-Wire Serial Interface
? 100 Wiper Tap Points
- Wiper Position Stored in Non-volatile Memory and Recalled on Power-up
? 99 Resistive Elements
- Temperature Compensated
- End-to-End Resistance, ±20%
- Terminal Voltages, ±5V
? Low Power CMOS
- VCC = 5V
- Active Current, 3mA max.
- Standby Current, 750μA max.
? High Reliability
- Endurance, 100,000 Data Changes per Bit
- Register Data Retention, 100 years
? Pb-Free Available (RoHS Compliant)

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
X9C103P
X9C103P

IC DIGITAL POT 10K 100TP 8DIP
Data Sheet
Negotiable
X9C103PI
X9C103PI

IC DIGITAL POT 10K 100TP 8DIP
Data Sheet
Negotiable
X9C103PZ
X9C103PZ
Intersil
Digital Potentiometer ICs 10K EEPOTTM POT CMOS 8LD COM
Data Sheet
0-1: $2.18
1-25: $1.85
25-100: $1.52
100-250: $1.38
X9C103PIZ
X9C103PIZ

IC XDCP 100-TAP 10K EE 8-DIP
Data Sheet
0-150: $1.90
