Product Summary

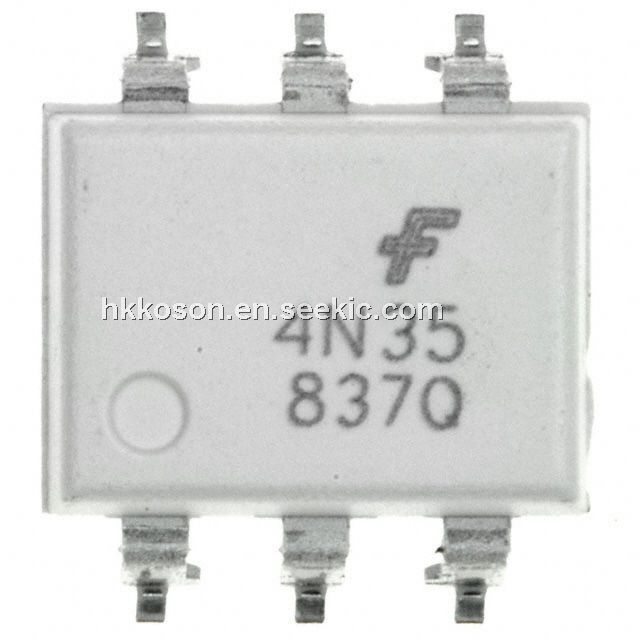

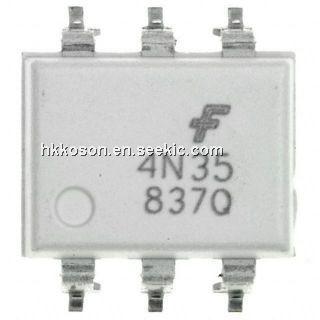

The 4N35SR2M is a high-performance General Purpose 6-Pin Phototransistor Optocouplers.
Parametrics
4N35SR2M Parametrics:
Packaging
Tape & Reel (TR)
Number of Channels
1
Input Type
DC
Voltage - Isolation
7500Vpk
Current Transfer Ratio (Min)
100% @ 10mA
Current Transfer Ratio (Max)
-
Voltage - Output
30V
Current - Output / Channel
-
Current - DC Forward (If)
60mA
Vce Saturation (Max)
300mV
Output Type
Transistor with Base
Mounting Type
Surface Mount
Package / Case
6-SMD
Dynamic Catalog
4N25,26,27,28,35,36,37Series
Other Names
4N35SR2M-ND
4N35SR2MTR
Features
4N35SR2M Features:
■ UL recognized (File # E90700, Volume 2)
■ VDE recognized (File # 102497)
– Add option V (e.g., 4N25VM)

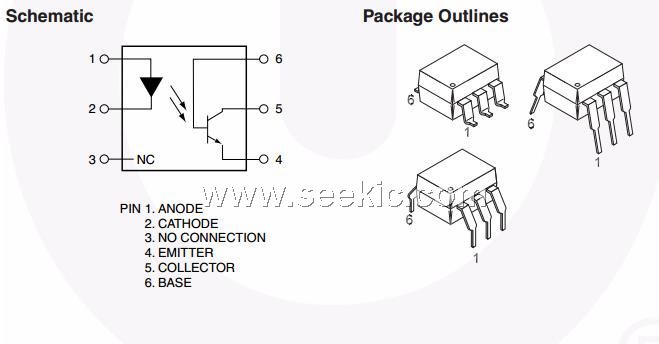

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 4N35SR2M |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler Phototransistor |
Data Sheet |
|
|
||||||||||||
 |
4N35SR2M_F132 |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupl DC-In 1-Ch w/Base DC-Out 6-Pin |
Data Sheet |
Negotiable |
|
||||||||||||
