Product Summary

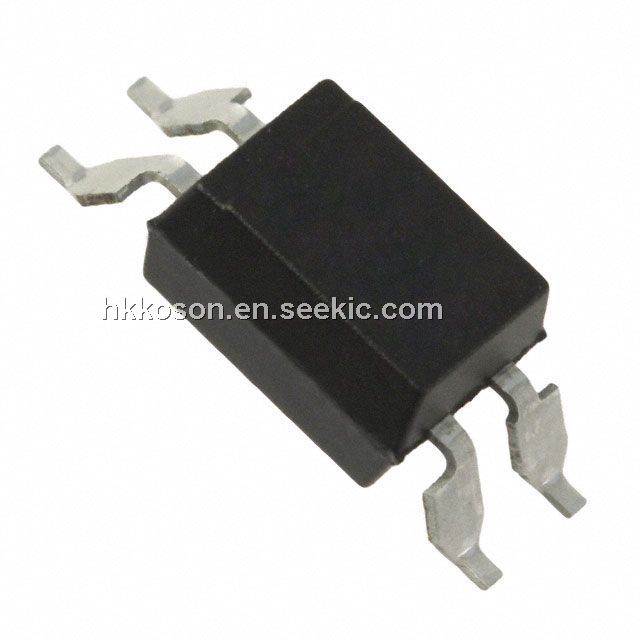

The PS2505L-1 is a high-performance Optoisolator.
Parametrics
PS2505L-1 Parametrics:
Packaging
Tube
Number of Channels
1
Voltage - Isolation
5000Vrms
Current Transfer Ratio (Min)
80% @ 5mA
Current Transfer Ratio (Max)
600% @ 5mA
Turn On / Turn Off Time (Typ)
-
Rise / Fall Time (Typ)
3μs, 5μs
Input Type
AC, DC
Output Type
Transistor
Voltage - Output (Max)
80V
Current - Output / Channel
50mA
Voltage - Forward (Vf) (Typ)
1.17V
Current - DC Forward (If) (Max)
80mA
Vce Saturation (Max)
300mV
Operating Temperature
-55°C ~ 100°C
Mounting Type
Surface Mount
Package / Case
4-SMD, Gull Wing
Supplier Device Package
*
Features
PS2505L-1 Features:
? AC input response
? High isolation voltage (BV = 5 000 Vr.m.s.)
? High collector to emitter voltage (VCEO = 80 V)
? High-speed switching (tr = 3 μs TYP., tf = 5 μs TYP.)
? Safety standards
? UL approved: No. E72422
