Product Summary

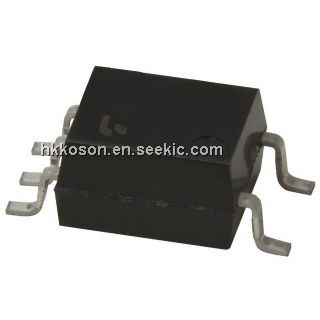

The TOSHIBA mini flat coupler TLP114A is a small outline coupler, suitable for surface mount assembly.
TLP114A consists of a high output power GaA?As light emitting didoe, optically coupled to a high speed detector of one chip
photodiode-transistor
Parametrics
TLP114A Parametrics:
Packaging
Tape & Reel (TR)
Number of Channels
1
Input Type
DC
Voltage - Isolation
3750Vrms
Current Transfer Ratio (Min)
20% @ 16mA
Current Transfer Ratio (Max)
-
Voltage - Output
20V
Current - Output / Channel
8mA
Current - DC Forward (If)
20mA
Vce Saturation (Max)
-
Output Type
Transistor with Vcc
Mounting Type
Surface Mount
Package / Case
6-SOIC (0.173", 4.40mm Width) 5 Leads
Features
TLP114A Features:
- Isolation voltage: 3750 Vrms (min.)
- Switching speed: tpHL = 0.8μs, tpLH = 0.8μs (max.) (RL = 1.9 kΩ)
- TTL compatible
- UL recognized: UL1577, file no. E67349

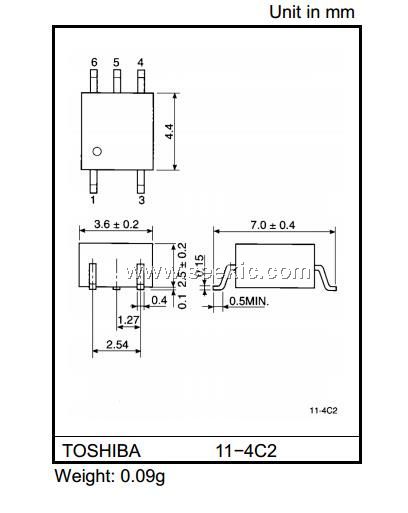

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP114A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP114A(IGM) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
TLP114A(IGM-TPRF) |
Toshiba |
High Speed Optocouplers MINIFLAT PKG COUPLER OPTOCPLR/SOLID STATE |
Data Sheet |
|
|
||||||||||||
|
TLP114A(TPR,F) |
Toshiba |
High Speed Optocouplers IC cplr 1Mbps CTR=20%min |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP114AIGM |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP114ATPLF |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP114A(TPR) |
|
TRANSCPLR HS TRANS OUT 6MFSOP-5 |
Data Sheet |
Negotiable |
|
||||||||||||
