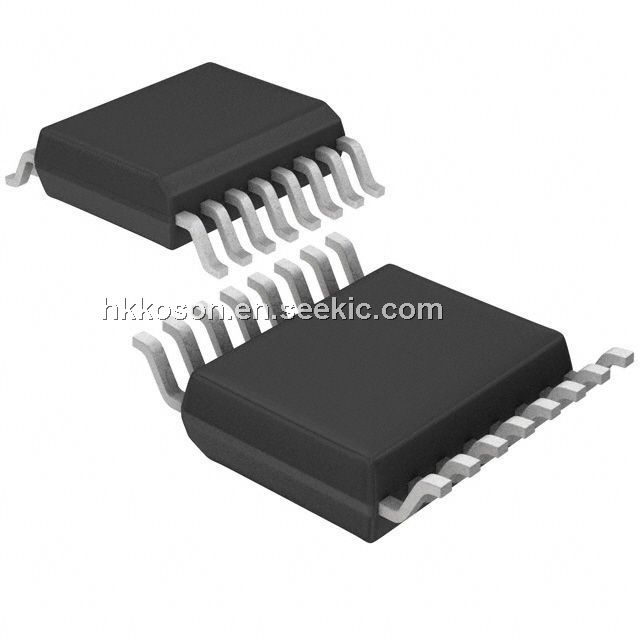

Product Summary

The PS2802-4 is a high-performance Optoisolator.

Parametrics

PS2802-4 Parametrics:

Packaging   Tube
Number of Channels 4
Voltage - Isolation 2500Vrms
Current Transfer Ratio (Min) 200% @ 1mA
Current Transfer Ratio (Max) -
Turn On / Turn Off Time (Typ) -
Rise / Fall Time (Typ) 200μs, 200μs
Input Type DC
Output Type Darlington
Voltage - Output (Max) 40V
Current - Output / Channel 100mA
Voltage - Forward (Vf) (Typ) 1.1V
Current - DC Forward (If) (Max) 50mA
Vce Saturation (Max) 1V
Operating Temperature -55°C ~ 100°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package *
Other Names PS28024

Features

PS2802-4 Features:

? High isolation voltage (BV = 2 500 Vr.m.s.)
? Small and thin package (16-pin SSOP, Pin pitch 1.27 mm)
? High current transfer ratio (CTR = 2 000% TYP. @ IF = 1 mA, VCE = 2 V)
? Safety standards: PS2802-4
 ? UL approved: File No. E72422
 ? CSA approved: File No. CA 101391
 ? DIN EN60747-5-2 (VDE0884 Part2) approved (Option)

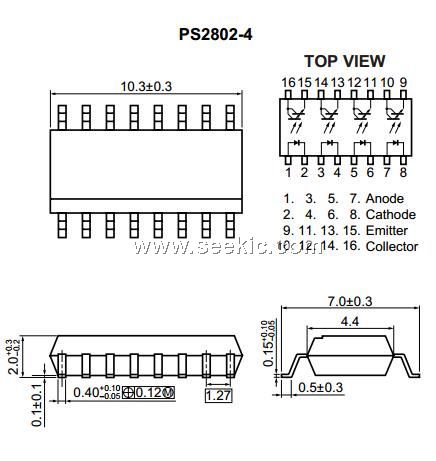

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PS2802-4-A
PS2802-4-A
CEL
Transistor Output Optocouplers Hi-Iso Darling 4-Ch
Data Sheet
0-1: $2.82
1-10: $2.54
10-100: $2.15
100-500: $1.93
PS2802-4-F3
PS2802-4-F3

OPTOISOLATOR 4CH DARL OUT 16-SOP
Data Sheet
Negotiable
PS2802-4-F3-A
PS2802-4-F3-A
CEL
Transistor Output Optocouplers Hi-Iso Darling 4-Ch
Data Sheet
0-1: $1.58
1-10: $1.44
10-100: $1.31
100-500: $1.14
PS2802-4
PS2802-4
CEL
Transistor Output Optocouplers Hi-Iso Darling 4-Ch
Data Sheet
Negotiable
