Product Summary
The PS21765 is a high-performance Power Driver .
Parametrics
PS21765 Parametrics:
| Type | IGBT |
|---|---|
| Configuration | 3 Phase |
| Current | 20A |
| Voltage | 600V |
| Voltage - Isolation | 2500VDC |
| Package / Case | PCB Module |
| Dynamic Catalog | Intellimod? PS21, PS22 Series |
| For Use With | |
| Other Names | 835-1037 |
Features
PS21765 Features:
- Compact Packages
- Single Power Supply
- Integrated HVICs
- Direct Connection to CPU
- Reduced Rth

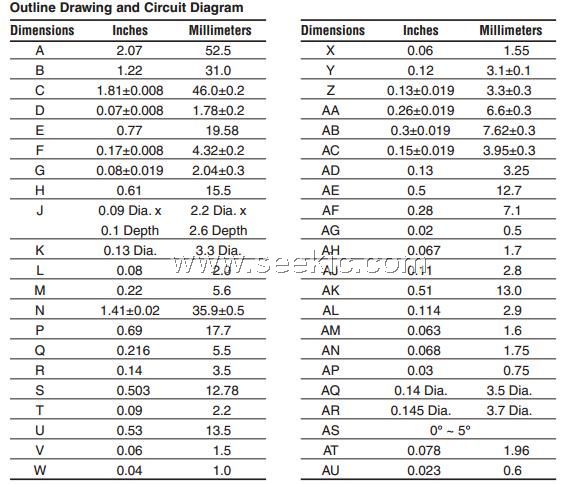

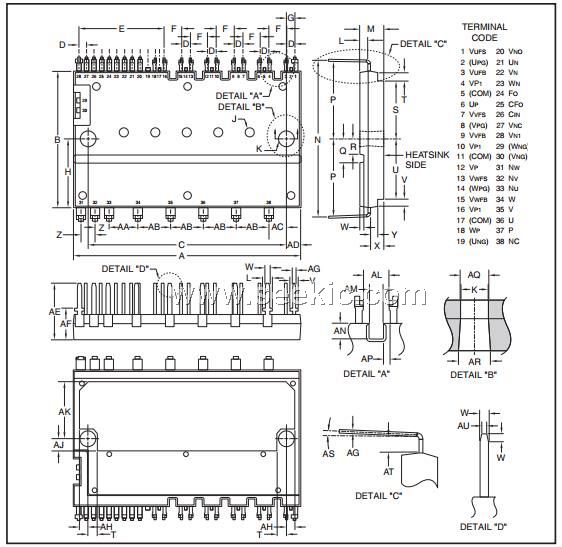

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS21765 |
|

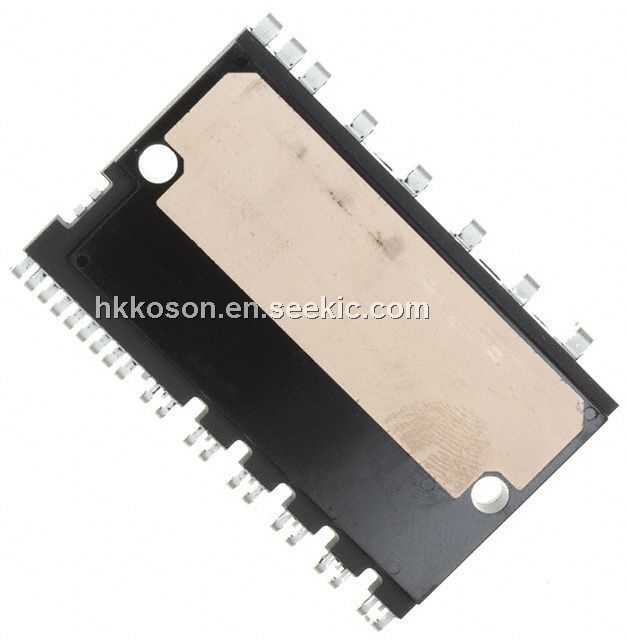

MOD IPM 600V 20A MINI DIP |
Data Sheet |
|
|
||||||||||||||||||||
