Product Summary

    The PM200DSA120 is a high-performance Intellimod? Module,which is used for Inverters, UPS, Motion/Servo Control and
Power Supplies.

Parametrics

PM200DSA120 Parametrics:

Type IGBT
Configuration 1 Phase Inverter
Current 200A
Voltage 1200V
Voltage - Isolation 2500Vrms
Package / Case Module

Features

PM200DSA120 Features:


  • Complete Output PowerCircuit
  • Gate Drive Circuit
  • Protection Logic


– Short Circuit

– Over Current

– Over Temperature

– Under Voltage

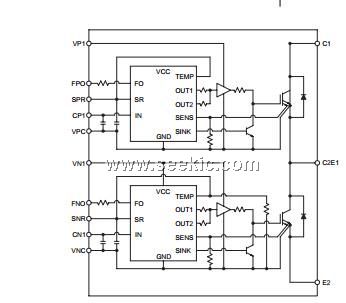

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

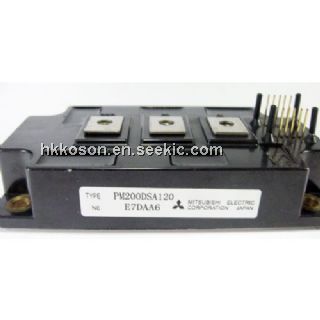

PM200DSA120
PM200DSA120


MOD IPM DUAL 1200V 200A

Data Sheet

Negotiable
