Product Summary

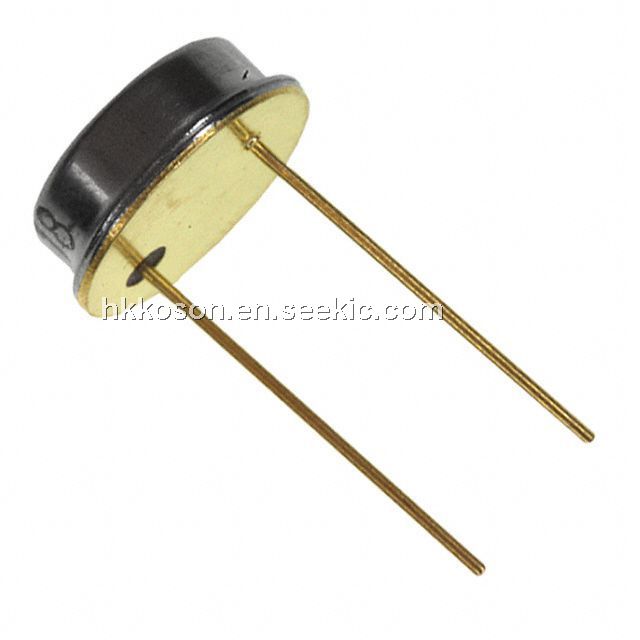

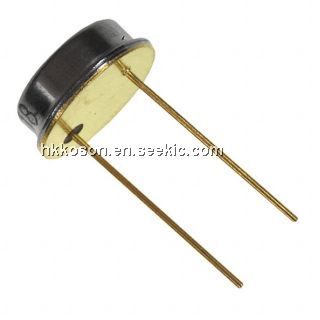

BPW21R is a planar Silicon PN photodiode in a hermetically sealed short TO-5 case, especially designed for high precision

linear applications.

Due to its extremely high dark resistance, the short circuit photocurrent is linear over seven decades of illumination level.
On the other hand, there is a strictly logarithmic correlation between open circuit voltage and illumination over the same
range.

The device is equipped with a flat glass window with built in color correction filter, giving an approximation to the spectral

response of the human eye.

Parametrics

BPW21R Parametrics:

Wavelength 565nm
Color - Enhanced -
Spectral Range 420nm ~ 675nm
Diode Type PIN
Responsivity @ nm -
Response Time -
Voltage - DC Reverse (Vr) (Max) 10V
Current - Dark (Typ) 2nA
Active Area 7.5mm2
Viewing Angle 100°
Operating Temperature -40°C ~ 125°C
Package / Case Radial, Lensed Metal Can, 2 Lead
Dynamic Catalog BPV and BPW
Other Names 751-1013

Features

BPW21R Features:

? Package type: leaded

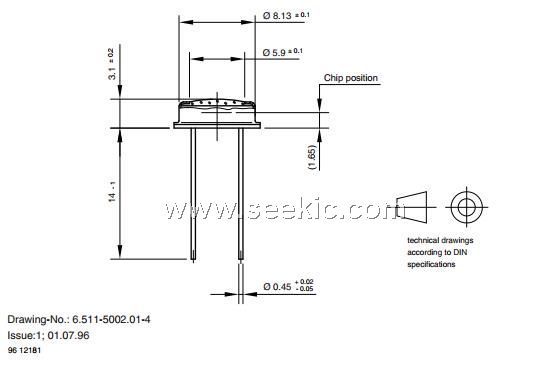

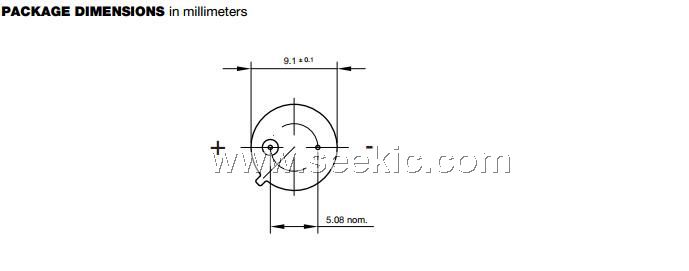

? Package form: TO-5
? Dimensions (in mm): ? 8.13
? Radiant sensitive area (in mm2): 7.5
? High photo sensitivity
? Adapted to human eye responsivity
? Angle of half sensitivity: ? = ± 50°
? Hermetically sealed package
? Cathode connected to package
? Flat glass window
? Low dark current
? High shunt resistance
? High linearity
? Compliant to RoHS Directive 2002/95/EC and in accordance with WEEE 2002/96/EC
