Product Summary
The MMA7660FCR1 is a ±1.5 g 3-Axis Accelerometer with Digital Output (I2C).
Parametrics
MMA7660FCR1 Parametrics:
Axis
X, Y, Z
Acceleration Range
±1.5g
Sensitivity
21.33 count/g
Voltage - Supply
2.4 V ~ 3.6 V
Output Type
Digital - I2C
Bandwidth
-
Interface
I2C, 2-Wire Serial
Mounting Type
Surface Mount
Package / Case
10-VFDFN
Supplier Device Package
10-DFN (3x3)
Dynamic Catalog
MMA7660FC
Other Names
MMA7660FCR1-ND
MMA7660FCR1TR
Features
MMA7660FCR1 Features:
? Digital Output (I2C)
? 3mm x 3mm x 0.9mm DFN Package
? Low Power Current Consumption: Off Mode: 0.4 μA, Standby Mode: 2 μA, Active Mode: 47 μA at 1 ODR
? Configurable Samples per Second from 1 to 120 samples a second.
? Low Voltage Operation:
– Analog Voltage: 2.4 V - 3.6 V
– Digital Voltage: 1.71 V - 3.6 V
? Auto-Wake/Sleep Feature for Low Power Consumption
? Tilt Orientation Detection for Portrait/Landscape Capability
? Gesture Detection Including Shake Detection and Tap Detection
? Robust Design, High Shocks Survivability (10,000 g)
? RoHS Compliant
? Halogen Free
? Environmentally Preferred Product
? Low Cost

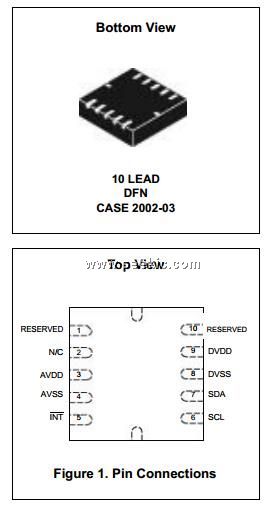

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MMA7660FCR1 |
Freescale Semiconductor |
Board Mount Accelerometers 3-Axis Digital Out Accelerometer |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
MMA7260Q |
Freescale Semiconductor |
Board Mount Accelerometers 1.5G Sensor Accel 3 Axis |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMA7260QR2 |
Freescale Semiconductor |
Board Mount Accelerometers 1.5G XYZ LEADS |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMA7260QT |
Freescale Semiconductor |
Board Mount Accelerometers 1.5G XYZ QFN 16 LDS |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMA7261Q |
Freescale Semiconductor |
Board Mount Accelerometers 2.2-3.6 VOLT |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMA7268QR2 |
Freescale Semiconductor |
Board Mount Accelerometers 1.5G XYZ QFN 16LD 6SQ |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MMA7331LT |
Freescale Semiconductor |
Board Mount Accelerometers 4G XYZ LGA 14 LEAD |
Data Sheet |
Negotiable |
|
||||||||||||
