Product Summary

The PTZTE2518B is a high-performance Zener diode.

Parametrics

PTZTE2518B Parametrics:

Packaging   Tape & Reel (TR)
Voltage - Zener (Nom) (Vz) 19V
Tolerance ±6%
Power - Max 1W
Impedance (Max) (Zzt) 12 Ohm
Current - Reverse Leakage @ Vr 10μA @ 13V
Voltage - Forward (Vf) (Max) @ If -
Operating Temperature -
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package PMDS
Dynamic Catalog PTZTE25 Zener Diode
Other Names PTZTE2518B-ND
PTZTE2518BTR

Features

PTZTE2518B Features:

1) Small power mold type. (PMDS)
2) High ESD tolerance

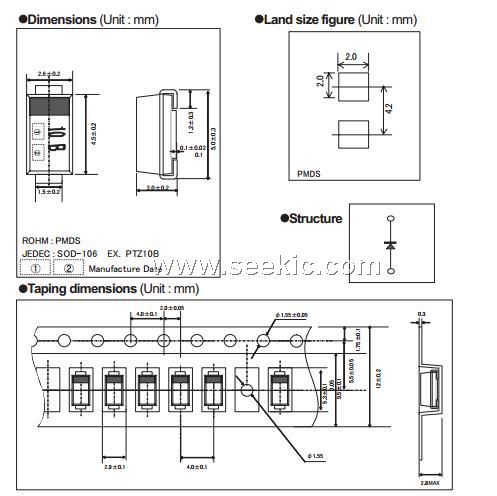

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PTZTE2518B
PTZTE2518B
ROHM Semiconductor
Zener Diodes 18V 20MA
Data Sheet
0-1: $0.30
1-25: $0.23
25-100: $0.17
100-500: $0.11
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PTZTE2510A
PTZTE2510A
ROHM Semiconductor
Zener Diodes 10V 40MA
Data Sheet
0-1: $0.36
1-25: $0.28
25-100: $0.20
100-500: $0.13
PTZTE2510B
PTZTE2510B
ROHM Semiconductor
Zener Diodes 10V 1W
Data Sheet
0-1: $0.36
1-25: $0.28
25-100: $0.20
100-500: $0.13
PTZTE2511A
PTZTE2511A
ROHM Semiconductor
Zener Diodes 11V 20MA
Data Sheet
0-1: $0.36
1-25: $0.28
25-100: $0.20
100-500: $0.13
PTZTE2511B
PTZTE2511B
ROHM Semiconductor
Zener Diodes 11V 1W
Data Sheet
0-1: $0.36
1-25: $0.28
25-100: $0.20
100-500: $0.13
PTZTE2512A
PTZTE2512A
ROHM Semiconductor
Zener Diodes ZENER1 WSOD-106 PKG SURF.MNT.
Data Sheet
0-1: $0.36
1-25: $0.28
25-100: $0.20
100-500: $0.13
PTZTE2512B
PTZTE2512B
ROHM Semiconductor
Zener Diodes ZENER 1W 12V SURF.MNT.
Data Sheet
0-1: $0.30
1-25: $0.21
25-100: $0.17
100-500: $0.11
