Product Summary

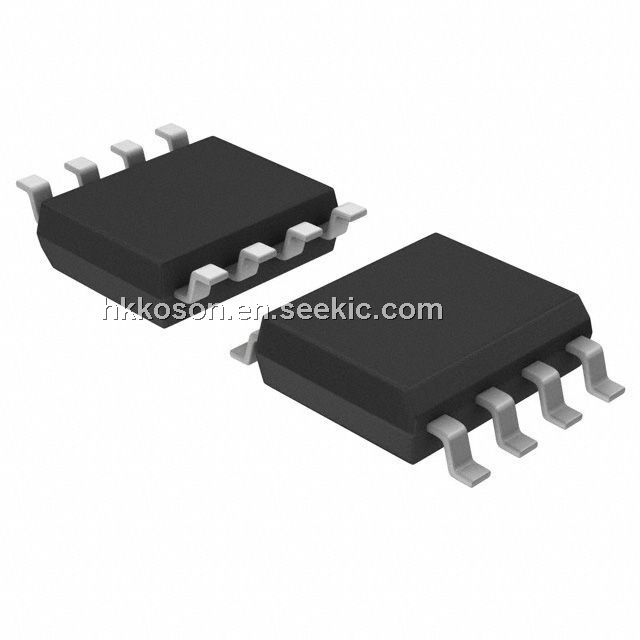

The 24LC256-I/SN is a high-performance Memory.
Parametrics
24LC256-I/SN Parametrics:
Series
-
Packaging
Tube
Format - Memory
EEPROMs - Serial
Memory Type
EEPROM
Memory Size
256K (32K x 8)
Speed
400kHz
Interface
I2C, 2-Wire Serial
Voltage - Supply
2.5 V ~ 5.5 V
Operating Temperature
-40°C ~ 85°C
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC N
Dynamic Catalog
I2C? Serial EEPROM
Other Names
24LC256I/SN
24LC256ISN
Features
24LC256-I/SN Features:
? Single Supply with Operation Down to 1.7V for 24AA256 and 24FC256 Devices, 2.5V for 24LC256 Devices
? Low-Power CMOS Technology:
- Read current: 400 uA max. at 5.5V, 400 kHz
- Standby current: 1 uA max. at 3.6V, I-temp
? 2-Wire Serial Interface, I2C? Compatible
? Cascadable up to Eight Devices
? Schmitt Trigger Inputs for Noise Suppression
? Output Slope Control to Eliminate Ground Bounce
? 100 kHz and 400 kHz Clock Compatibility
? Page Write Time 5 ms Max.
? Self-Timed Erase/Write Cycle
? 64-Byte Page Write Buffer
? Hardware Write-Protect
? ESD Protection >4000V
? More than One Million Erase/Write Cycles
? Data Retention >200 years
? Factory Programming Available
? RoHS Compliant
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 24LC256-I/SN |
Microchip Technology |
EEPROM 32kx8 - 2.5V |
Data Sheet |
|
|
||||||||||||
|
24LC256-I/SNG |
Microchip Technology |
EEPROM 32kx8 - 2.5V Lead Free Package |
Data Sheet |
|
|
||||||||||||
