Product Summary

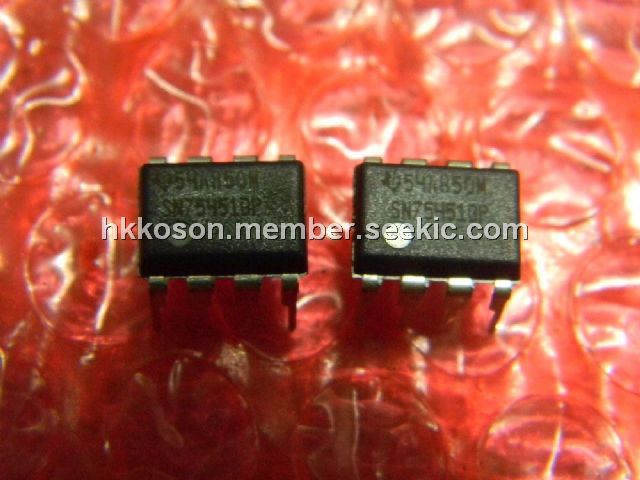

The SN75451BP is a dual peripheral driver. It is designed for use in systems that employ TTL logic. The speed of the SN75451BP is equal to that of the SN75450 family, and the parts are designed to ensure freedom from latch-up. Diode-clamped inputs simplify circuit design. Typical applications of the SN75451BP include high-speed logic buffers, power drivers, relay drivers, lamp drivers, MOS drivers, line drivers, and memory drivers.
Parametrics
SN75451BP absolute maximum ratings: (1)Supply voltage:7 V; (2)Input voltage:5.5 V; (3)Off-state voltage applied to open-collector outputs:12 V; (4)Operating free-air temperature range:0℃ to 70℃; (5)Storage temperature range:–65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds:260℃.
Features
SN75451BP features: (1)Characterized for Use to 300 mA; (2)High-Voltage Outputs; (3)No Output Latch-Up at 20 V (After Conducting 300 mA); (4)High-Speed Switching; (5)Circuit Flexibility for Varied Applications; (6)TTL-Compatible Diode-Clamped Inputs; (7)Standard Supply Voltages; (8)Plastic DIP (P) With Copper Lead Frame Provides Cooler Operation and Improved Reliability; (9)Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN75451BP |
Texas Instruments |
Peripheral Drivers & Components (PCIs) Dual Hi Spd Periph |
Data Sheet |
|
|
||||||||||||
|
SN75451BPE4 |
Texas Instruments |
Peripheral Drivers & Components (PCIs) Dual Hi Spd Periph |
Data Sheet |
|
|
||||||||||||
|
SN75451BPSR |
Texas Instruments |
Peripheral Drivers & Components (PCIs) Dual Peripheral |
Data Sheet |
|
|
||||||||||||
|
SN75451BPSRG4 |
Texas Instruments |
Peripheral Drivers & Components (PCIs) Dual Hi Current Peripheral Drivers |
Data Sheet |
|
|
||||||||||||
|
SN75451BPSRE4 |
Texas Instruments |
Peripheral Drivers & Components (PCIs) Dual Peripheral |
Data Sheet |
|
|
||||||||||||
