Product Summary
The 24LC64-I/SN is a high-performance Memory IC.
Parametrics
24LC64-I/SN Parametrics:
Packaging
Tube
Format - Memory
EEPROMs - Serial
Memory Type
EEPROM
Memory Size
64K (8K x 8)
Speed
400kHz
Interface
I2C, 2-Wire Serial
Voltage - Supply
2.5 V ~ 5.5 V
Operating Temperature
-40°C ~ 85°C
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC N
Dynamic Catalog
I2C? Serial EEPROM
Other Names
24LC64ISN
Features
24LC64-I/SN Features:
?Single supply with operation down to 1.8V
?Low power CMOS technology-1mA active current typical -1μA standby current (max.) (I-temp)
?Organized as 8 blocks of 8K bit (64K bit)
?2-wire serial interface bus, I2C? compatible
?Cascadable for up to eight devices ?Schmitt trigger inputs for noise suppression ?Output slope control to eliminate
ground bounce
?Self-timed write cycle (including auto-erase)
?Page-write buffer for up to 32 bytes
?2ms typical write cycle time for page-write
?Hardware write protect for entire memory
?Can be operated as a serial ROM
?Factory programming (QTP) available
?ESD protection > 4,000V
?1,000,000 erase/write cycles
?Data retention > 200 years

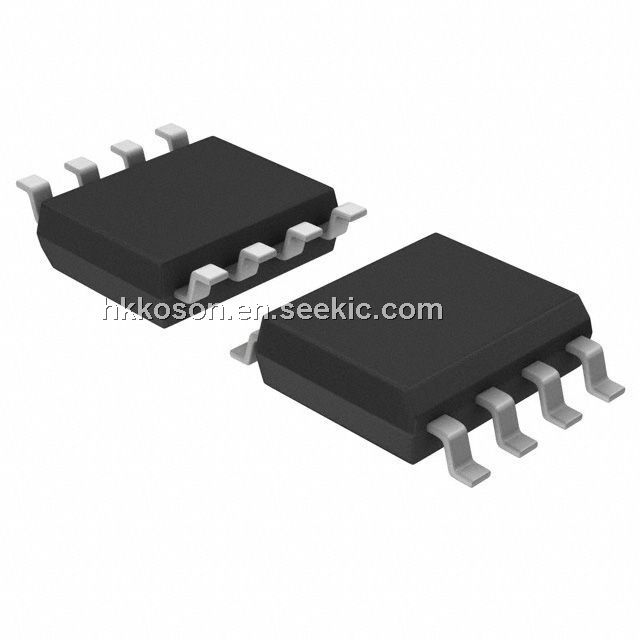

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 24LC64-I/SN |
Microchip Technology |
EEPROM 8kx8 - 2.5V |
Data Sheet |
|
|
||||||||||||
|
24LC64-I/SNG |
Microchip Technology |
EEPROM 8kx8 - 2.5V Lead Free Package |
Data Sheet |
|
|
||||||||||||
