Product Summary
The BAV99 is a high-speed double diode. It consists of two high-speed switching diodes connected in series, fabricated in planar technology, and encapsulated in the small SOT23 plastic SMD package. It is suitable for High-speed switching in thick and thin-film circuits.
Parametrics
Absolute maximum ratings: (1)VRRM, repetitive peak reverse voltage: - 85 V; (2)VR, continuous reverse voltage: - 75 V; (3)IFRM, repetitive peak forward current: - 450 mA; (4)Ptot, total power dissipation: - 250 mW; (5)Tstg, storage temperature: -65 +150℃; (6)Tj, junction temperature: - 150℃.
Features
Features: (1)Small plastic SMD package; (2)High switching speed: max. 4 ns; (3)Continuous reverse voltage: max. 75 V; (4)Repetitive peak reverse voltage: max. 85 V; (5)Repetitive peak forward current: max. 450 mA.

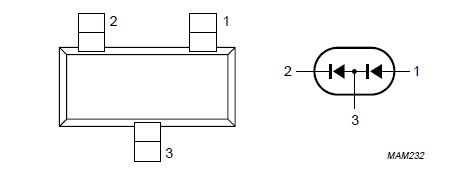

Diagrams
