Product Summary
The 6MBI75FA-060-01 is an IGBT module. The applications of the device include inverter for motor drive, AC DC servo drive amplifier, uninterruptible power supply and industrial machines.
Parametrics
6MBI75FA-060-01 absolute maximum ratings: (1)VCES: 600V; (2)VGES: ±20V; (3)IC: 75A; 1ms, IC pulse: 150A; duty=83%, -IC: 75A; 1ms, -IC pulse: 150A; (4)Pc: 290W; (5)Tj: 150℃; (6)Tstg: -40 to 125℃; (7)m: 450g; (8)Viso: 2500V; (9)mounting: 3.5Nm; terminals: 1.7Nm.
Features
6MBI75FA-060-01 features: (1)low saturation voltage; (2)voltage drive; (3)variety of power capacity series.

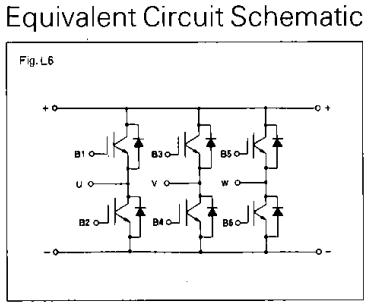

Diagrams
 |
