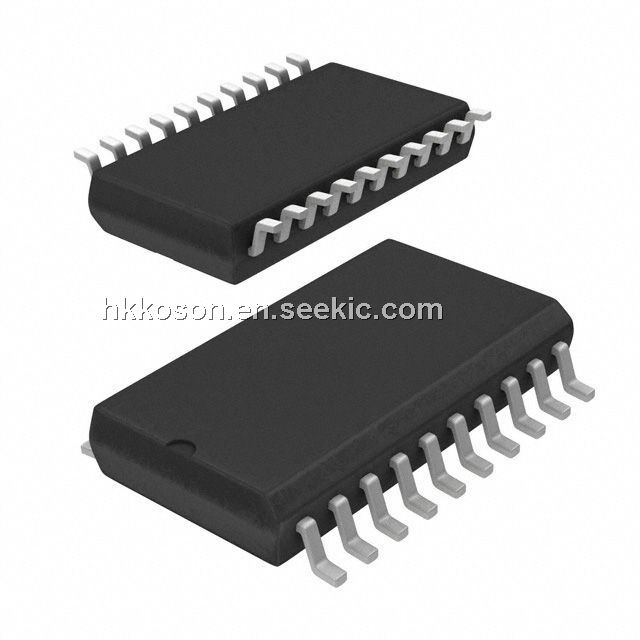

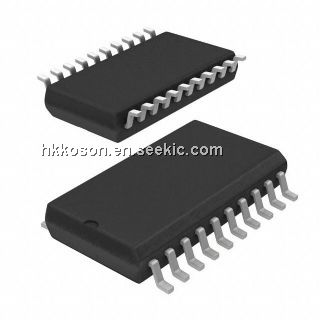

Product Summary

The 74HC373D is a high-performance Logic IC.

Parametrics

74HC373D Parametrics:

Packaging   Tape & Reel (TR)
Logic Type D-Type Transparent Latch
Circuit 8:8
Output Type Tri-State
Voltage - Supply 2 V ~ 6 V
Independent Circuits 1
Delay Time - Propagation 12ns
Current - Output High, Low 7.8mA, 7.8mA
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SO
Dynamic Catalog 74HC
Other Names 568-1437-2
74HC373D-T
74HC373D653
933715470653

Features

74HC373D Features:

  •  3-state non-inverting outputs for bus oriented applications
  •  Common 3-state output enable input
  •  ESD protection:


 HBM JESD22-A114F exceeds 2 000 V

 MM JESD22-A115-A exceeds 200

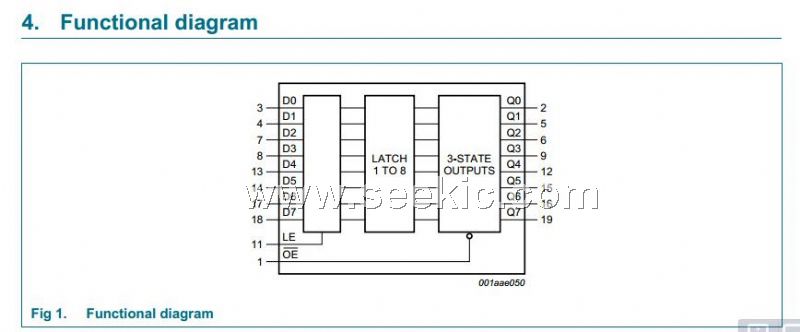

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
74HC373D
74HC373D
NXP Semiconductors
Latches OCTAL D LATCH 3STATE
Data Sheet
Negotiable
74HC373D,652
74HC373D,652
NXP Semiconductors
Latches OCTAL D LATCH 3STATE
Data Sheet
0-1: $0.08
1-25: $0.08
25-100: $0.07
100-250: $0.07
74HC373D,653
74HC373D,653
NXP Semiconductors
Latches OCTAL 3-STATE LATCH
Data Sheet
0-1: $0.09
1-25: $0.08
25-100: $0.08
100-250: $0.07
74HC373DB,118
74HC373DB,118
NXP Semiconductors
Latches OCTAL 3-STATE LATCH
Data Sheet
0-1: $0.10
1-25: $0.09
25-100: $0.08
100-250: $0.08
74HC373DB,112
74HC373DB,112
NXP Semiconductors
Latches OCTAL 3-STATE LATCH
Data Sheet
0-1: $0.26
1-25: $0.22
25-100: $0.18
100-250: $0.15
74HC373DB
74HC373DB
NXP Semiconductors
Latches OCTAL 3-STATE LATCH
Data Sheet
Negotiable
74HC373DTR2G
74HC373DTR2G
ON Semiconductor
Latches OCTAL 3ST NONINVERT TRANSPARENT LATCH
Data Sheet
0-1: $0.28
1-25: $0.21
25-100: $0.17
100-500: $0.13
74HC373DB-T
74HC373DB-T
NXP Semiconductors
Latches OCTAL 3-STATE LATCH
Data Sheet
Negotiable
