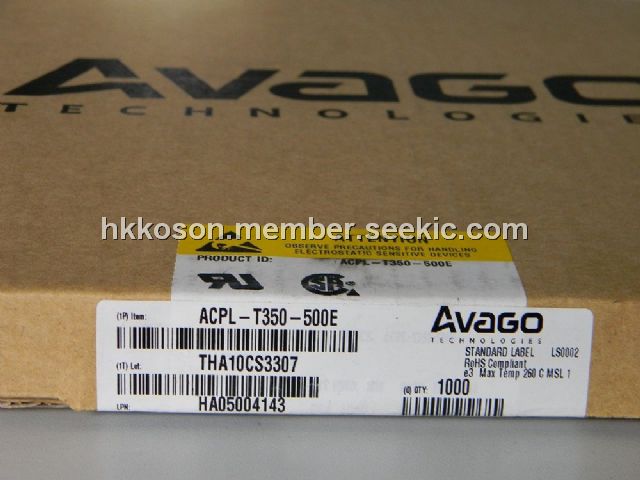

ACPL-T350-500E

3.75KVRMS, 8SMD, 2.5 Amp, IGBT Gate Driver Optocoupler, 500ns

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.73~0.81 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.73~0.81

PartNumber:: ACPL-T350-500E

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Winnie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-03

From Other Seller

Part Number:ACPL-T350-500E
US $0.73 - 0.81
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ACPL-T350-500E is a 2.5 Amp Output Current IGBT Gate Driver Optocoupler with Low ICC. It contains a GaAsP LED. The LED is optically coupled to an integrated circuit with a power output stage. The ACPL-T350-500E is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The applications of the ACPL-T350-500E are IGBT/MOSFET gate drive, Inverter for Home Appliances, Industrial Inverters, Switching Power Supplies (SPS).

Parametrics

ACPL-T350-500E absolute maximum ratings: (1)Storage Temperature:-55 to 125℃; (2)Operating Temperature:-40 to 100℃; (3)Average Input Current:25mA; (4)Peak Transient Input Current:1.0A(<1 μs pulse width, 300pps); (5)Reverse Input Voltage:5V; (6)“High” Peak Output Current:2.5A; (7)“Low” Peak Output Current:2.5A; (8)Supply Voltage:0V to 35V; (9)Input Current (Rise/Fall Time):500ns; (10)Output Voltage:0V to VCC; (11)Output Power Dissipation:250mW; (12)Total Power Dissipation:295mW; (13)Lead Solder Temperature:260℃ for 10sec.

Features

ACPL-T350-500E features: (1)2.5A Absolute Maximum Peak Output Current; (2)15 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1500 V; (3)1.5 V maximum low level output voltage (VOL); (4)ICC = 4 mA maximum supply current; (5)Under Voltage Lock-Out protection (UVLO) with hysteresis; (6)Wide operating VCC range: 15 to 30 Volts; (7)500 ns maximum switching speeds; (8)Industrial temperature range: -40 to 100℃.
