Product Summary
The 74LVXC3245WM is a high-performance 8-Bit Dual Supply Configurable Voltage Interface Transceiver with 3-STATE Outputs.
Parametrics
74LVXC3245WM Parametrics:
Packaging
Tube
Logic Function
Translator, Bidirectional, 3-State
Number of Bits
8
Input Type
Voltage
Output Type
Voltage
Data Rate
-
Number of Channels
1
Number of Outputs/Channel
8
Differential - Input:Output
No/No
Propagation Delay (Max)
4.8ns
Voltage - Supply
2.7 V ~ 3.6 V, 3 V ~ 5.5 V
Operating Temperature
-40°C ~ 85°C

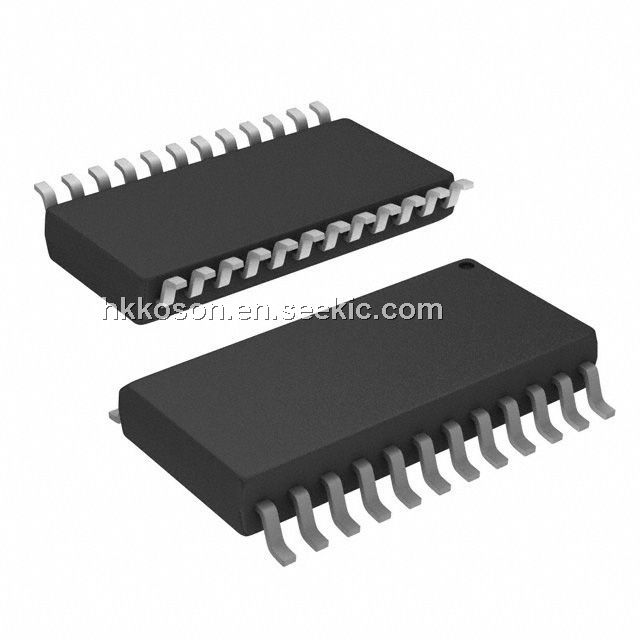

Package / Case
24-SOIC (0.295", 7.50mm Width)
Supplier Device Package
24-SOIC
Mounting Type
Surface Mount
Other Names
74LVXC3245WM-ND
74LVXC3245WMFS
Features
74LVXC3245WM Features:
■ Control inputs compatible with TTL level
■ Outputs source/sink up to 24 mA
■ Guaranteed simultaneous switching noise level and dynamic threshold performance
■ Flexible VCCB operating range
■ Allows B Port and VCCB to float simultaneously when OE is HIGH
■ Functionally compatible with the 74 series 245
■ Implements proprietary EMI reduction circuitry

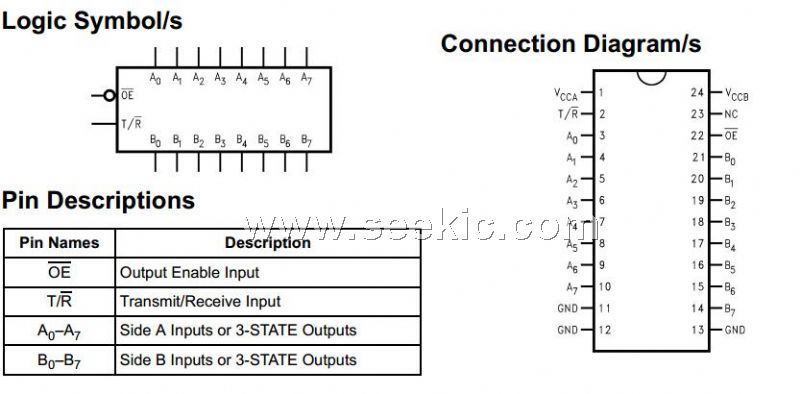

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 74LVXC3245WM |
Fairchild Semiconductor |
Bus Transceivers 8-Bit Dual Sup Trans |
Data Sheet |
Negotiable |
|
||||
|
74LVXC3245WM_Q |
Fairchild Semiconductor |
Bus Transceivers 8-Bit Dual Sup Trans |
Data Sheet |
Negotiable |
|
||||
|
74LVXC3245WMX |
Fairchild Semiconductor |
Bus Transceivers 8-Bit Dual Sup Trans |
Data Sheet |
Negotiable |
|
||||
