Product Summary

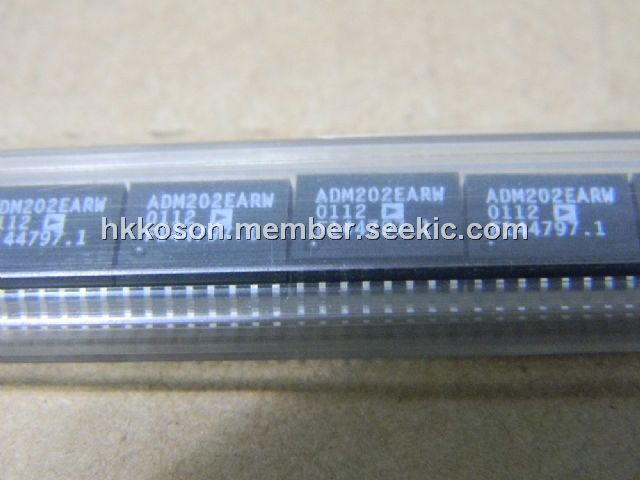

The ADM202EARW is a robust, high speed, 2-channel RS-232/V.28 interface device that operates from a single 5 V power supply. The ADM202EARW is suitable for operation in harsh electrical environments and are compliant with the EU directive on EMC (89/336/EEC). The ADM202EARW is used for the voltage doubler/inverter, permitting operation from a single 5 V supply.
Parametrics
ADM202EARW absolute maximum ratings: (1)VCC:-0.3 V to +6 V ; (2)V+:(VCC-0.3 V) to +14 V ; (3)V–:+0.3 V to -14 V ; (4)Input Voltages:TIN:0.3 V to (V+, +0.3 V), RIN:±30 V ; (5)Output Voltages:TOUT:±15 V, ROUT:–0.3 V to (VCC + 0.3 V) ; (6)Short-Circuit Duration:TOUT:Continuous ; (7)Power Dissipation N-16(Derate 6 mW/℃ Above 50℃):450 mW,θJA, Thermal Impedance:117℃/W ; (8)Power Dissipation R-16(Derate 6 mW/℃ Above 50℃):450 mW,θJA, Thermal Impedance 158℃/W ; (9)Power Dissipation RU-16(Derate 6 mW/℃ Above 50℃):500 mW,θJA, Thermal Impedance 158℃/W ; (10)Operating Temperature Range:Industrial (A Version):–40℃ to +85℃ ; (11)Storage Temperature Range:–65℃ to +150℃ ; (12)Lead Temperature (Soldering, 10 sec):300℃ ; (13)ESD Rating (MIL-STD-883B) (I/O Pins):±15 kV ; (14)ESD Rating (IEC1000-4-2 Air) (I/O Pins):±15 kV ; (15)ESD Rating (IEC1000-4-2 Contact) (I/O Pins):±8 kV ; (16)EFT Rating (IEC1000-4-4) (I/O Pins):±2 kV .
Features
ADM202EARW features: (1)Complies with 89/336/EEC EMC directive ; (2)ESD protection to IEC1000-4-2 (801.2) ; (3)±8 kV: contact discharge ; (4)±15 kV: air-gap discharge ; (5)±15 kV: human body model ; (6)EFT fast transient/burst immunity (IEC1000-4-4) ; (7)Low EMI emissions (EN55022) ; (8)230 kbits/s data rate guaranteed ; (9)TSSOP package option ; (10)Upgrade for MAX202E, 232E, LT1181A.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM202EARW |
|
IC TX/RX RS-232 5V 15KV 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
ADM202EARW-REEL |
|
IC TX/RX RS-232 5V 15KV 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
ADM202EARWZ |
|
IC TX/RX RS-232 5V 15KV 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
ADM202EARWZ-REEL |
|
IC TXRX RS-232 5V 15KV 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||
