Product Summary

The AD694ARZ is a monolithic current transmitter that accepts high level signal inputs to drive a standard 4–20 mA current
loop for the control of valves, actuators, and other devices commonly used in process control. The input signal is buffered by

an input amplifier that can be used to scale the input signal or buffer the output from a current mode DAC. Precalibrated input

 spans of 0 V to 2 V and 0 V to 10 V are selected by simple pin strapping; other spans may be programmed with external

resistors.

Parametrics

AD694ARZ Parametrics:

Packaging   Tube
Type Current Transmitter
Input Type Voltage
Output Type Voltage
Interface -
Current - Supply 23mA
Mounting Type Surface Mount
Package/Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC W
Dynamic Catalog Sensor and Detector Interfaces

Features

AD694ARZ Features:

  • Single or Dual Supply Operation
  • Input Buffer Amplifier
  • Open-Loop Alarm
  • Optional External Pass Transistor to Reduce Self-Heating Errors
  • 0.002% Typ Nonlinearity
  • 4–20 mA, 0–20 mA Output Ranges
  • Precalibrated Input Ranges: 0 V to 2 V, 0 V to 10 V
  • Precision Voltage Reference


   Programmable to 2.000 V or 10.000 V

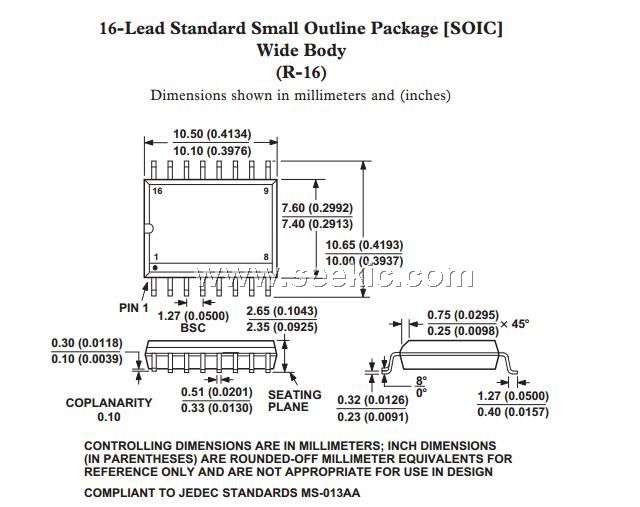

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD694ARZ
AD694ARZ

IC TRANSMITTER 4-20MA 16-SOIC
Data Sheet
0-1: $7.16
1-10: $6.51
10-100: $5.54
100-250: $5.05
250-500: $4.72
500-1000: $4.34
AD694ARZ-REEL
AD694ARZ-REEL

IC TRANSMITTER 4-20MA 16SOIC
Data Sheet
0-1: $6.17
1-10: $5.60
10-25: $5.19
25-100: $4.75
100-250: $4.35
250-500: $4.05
