Product Summary

The AD7945BRZ is a high-performance DAC.

Parametrics

AD7945BRZ Parametrics:

Packaging   Tube
Settling Time 600ns
Number of Bits 12
Data Interface Parallel
Number of Converters 1
Voltage Supply Source Single Supply
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SOIC W
Number of Outputs and Type 1 Current, Unipolar; 1 Current, Bipolar
Sampling Rate (Per Second) -
Dynamic Catalog 12 Bit

Features

AD7945BRZ Features:

  • 12-Bit Multiplying DACs
  • Guaranteed Specifications with +3.3 V/+5 V Supply
  • 0.5 LSBs INL and DNL
  • Low Power: 5 mW typ
  • Fast Interface
  • 40 ns Write Pulsewidth
  • Low Glitch: 60 nV-s with Amplifier Connected
  • Fast Settling: 600 ns to 0.01% with AD843

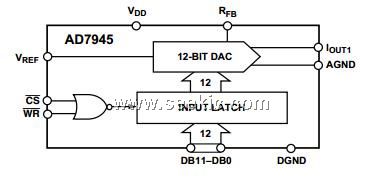

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7945BRZ
AD7945BRZ

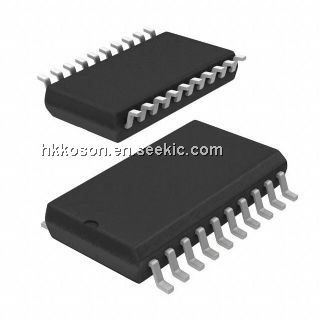

IC DAC 12BIT MULTIPLYING 20-SOIC
Data Sheet
0-1: $5.54
1-10: $4.98
10-100: $4.10
100-250: $3.76
250-500: $3.43
500-1000: $2.99
1000-2500: $2.95
AD7945BRZ-REEL
AD7945BRZ-REEL

IC DAC 12BIT MULT PARALL 20SOIC
Data Sheet
0-1000: $2.99
