Product Summary
The AD817AR is a High Speed, Low Power Wide Supply Range Amplifier.
Parametrics
AD817AR Parametrics:
Packaging
Tube
Amplifier Type
General Purpose
Number of Circuits
1
Output Type
-
Slew Rate
350 V/μs
Gain Bandwidth Product
50MHz
-3db Bandwidth
50MHz
Current - Input Bias
3.3μA
Voltage - Input Offset
500μV
Current - Supply
7mA
Current - Output / Channel
50mA
Voltage - Supply, Single/Dual (±)
5 V ~ 36 V, ±2.5 V ~ 18 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case

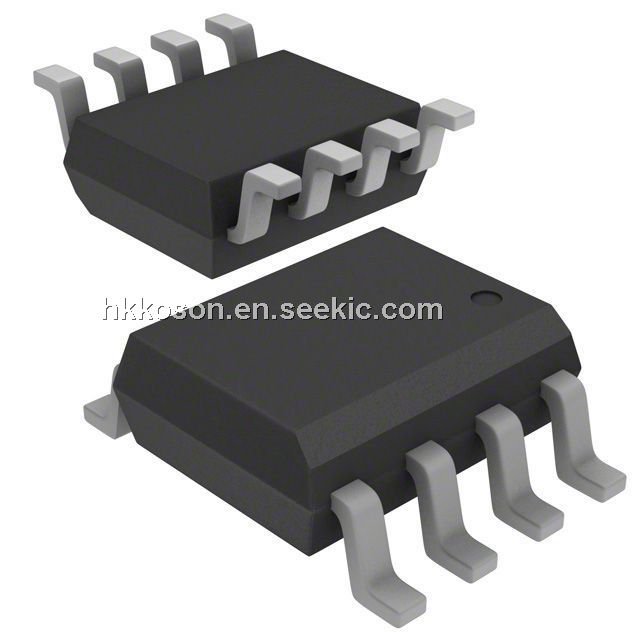

8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC N
Dynamic Catalog
General Purpose
Features
AD817AR Features:
- Low Cost
- High Speed
50 MHz Unity Gain Bandwidth
350 V/ms Slew Rate
45 ns Settling Time to 0.1% (10 V Step)
- Flexible Power Supply
Specified for Single (+5 V) and
Dual (65 V to 615 V) Power Supplies
Low Power: 7.5 mA max Supply Current
- High Output Drive Capability
Drives Unlimited Capacitive Load
50 mA Minimum Output Current
- Excellent Video Performance
70 MHz 0.1 dB Bandwidth (Gain = +1)
0.04% & 0.088 Differential Gain & Phase Errors@ 3.58 MHz

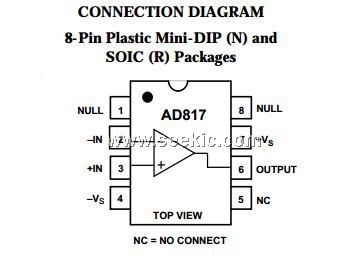

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD817AR |
|
IC OPAMP HS LP 8-SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD817AR-REEL |
|
IC OPAMP LP HS 8-SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD817AR-REEL7 |
|
IC OPAMP LP HS 8-SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD817ARZ |
|
IC OPAMP LP HS 8-SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD817ARZ-REEL |
|
IC OPAMP LP HS 8-SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD817ARZ-REEL7 |
|
IC OPAMP LP HS 8-SOIC |
Data Sheet |
|
|
||||||||||||||||||
 |
AD817AR-EBZ |
|
BOARD EVAL FOR AD817AR |
Data Sheet |
|
|
||||||||||||||||||
