Product Summary

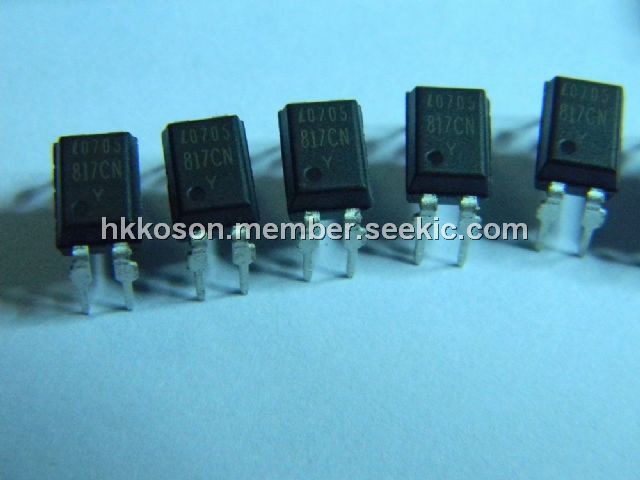

The LTV817C is a high density mounting type photocoupler. It is suitable for computer terminals, system appliances, measuring instruments, registers, copiers, automatic vending machines, electric home appliances such as fan heaters, etc, signal transmission between circuits of different potentials and impedances.
Parametrics
Absolute maximum ratings: (1)Input: Forward Current, IF: 50mA; Reverse Voltage, VR: 6V; Power Dissipation, P: 70mW; (2)Output: Collector-Emitter Voltage, VCEO: 35V; Emitter-Collector Voltage, VECO: 6V; Collector Current, IC: 50mA; Collector Power Dissipation, Pc: 150mW; (3)Total Power Dissipation, Ptot: 200mW; (4)Operating Temperature, Topr: -30~+100℃; (5)Storage Temperature, Tstg: -55~+125℃.
Features
Features: (1)Current transfer ratio; (2)High input-output isolation voltage; (3)Compact dual-in-line package; (4)UL approved; (5)TUV approved; (6)CSA approved; (7)FIMKO approved; (8)NEMKO approved; (9)DEMKO approved; (10)SEMKO approved; (11)VDE approved.

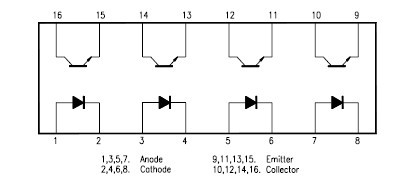

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTV817C |
Other |
|
Data Sheet |
Negotiable |
|
||||
