Product Summary
The ZLLS1000TA is a 40V silicon high current low leakage schottky diode. It is suitable for DC - DC Converters, Strobes, Mobile Phones, Charging Circuits and Motor control. Its package is SOT-23.
Parametrics
Absolute maximum ratings: (1)Continuous Reverse Voltage, VR: 40 V; (2)Forward Current, IF: 1.16 A; (3)Storage Temperature Range, Tstg: -55 to +150 ℃; (4)Junction Temperature, Tj: 150 ℃.
Features
Features: (1)Low Equivalent On Resistance; (2)Extremely Low Leakage (20μA @30V); (3)High current capability (IF = 1.16A); (4)Low VF, Fast switching Schottky; (5)SOT23 Package; (6)ZLLS1000 complements low temperature equivalent ZHCS1000; (7)Package thermally rated to 150℃.

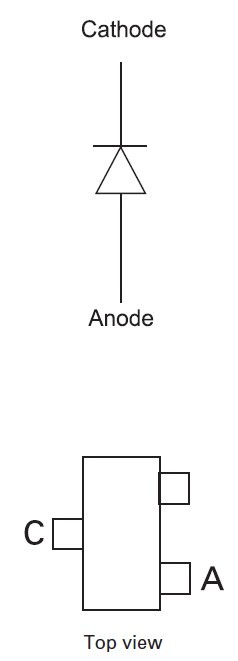

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ZLLS1000TA |
Diodes Inc. |
Schottky (Diodes & Rectifiers) VR=40V IF=1.16A IR=20uA |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
ZLLS1000TA |
Diodes Inc. |
Schottky (Diodes & Rectifiers) VR=40V IF=1.16A IR=20uA |
Data Sheet |
|
|
||||||||||||
|
ZLLS350TA |
Diodes Inc. |
Schottky (Diodes & Rectifiers) VR=40V IF=380mA IR=1uA |
Data Sheet |
|
|
||||||||||||
|
ZLLS500TC |
Diodes Inc. / Zetex |
Schottky (Diodes & Rectifiers) 500mA Low Leak Sch |
Data Sheet |
|
|
||||||||||||
 |
ZLLS500 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
ZLLS410TA |
Diodes Inc. / Zetex |
Schottky (Diodes & Rectifiers) 10V Low Leakage Schottky diode |
Data Sheet |
|
|
||||||||||||
|
ZLLS500TA |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 500mA Low Leak Sch |
Data Sheet |
|
|
||||||||||||
