Product Summary
The AD834JN is a high-performance 500 MHz Four-Quadrant Multiplier.
Parametrics
AD834JN Parametrics:
Packaging
Tube
Function
Analog Multiplier
Number of Bits/Stages
4-Quadrant
Package / Case
8-DIP (0.300", 7.62mm)
Supplier Device Package
8-PDIP
Dynamic Catalog
Analog Multipliers, Dividers
Features
AD834JN Features:
- DC to >500 MHz operation
- Differential ±1 V full-scale inputs
- Differential ±4 mA full-scale output current
- Low distortion (≤0.05% for 0 dBm input)
- Supply voltages from ±4 V to ±9 V
- Low power (280 mW typical at VS = ±5 V)

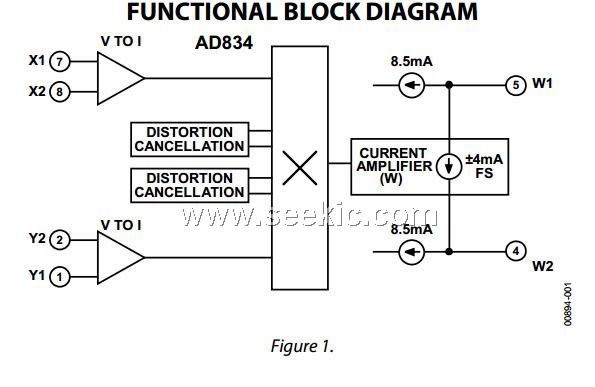

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD834JN |
Analog Devices Inc |
IC MULTIPLIER 4-QUADRANT 8-DIP |
Data Sheet |
|
|
||||||||||||||||
 |
AD834JNZ |
|
IC MULTIPLIER QUADRANT 8DIP |
Data Sheet |
|
|
||||||||||||||||
