Product Summary

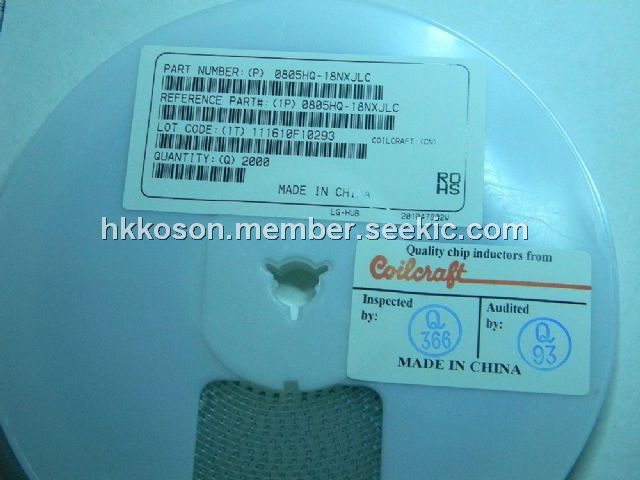

The 0805HQ-18NXJLC is a Chip Inductor. It offers our highest Q factors in an 0805 form factor. In addition, current handling has been improved with significantly lower DCR values. Like all Coilcraft wire wound ceramic chip inductors, the 0805HQ-18NXJLC provides exceptional SRFs, tight inductance tolerance and batch consistency.
Parametrics
0805HQ-18NXJLC general specifications: (1)inductance:18nH@250MHz; (2)percent tolerance:5.2; (3)Qmin:75@500MHz; (4)SRF min:2.55GHz; (5)DCR max:0.060homs; (6)Irms:1.4A; (7)color code:green.
Features
0805HQ-18NXJLC features: (1)Core material:Ceramic; (2)Terminations:RoHS compliant silver-palladium-platinum-glass frit, Other terminations available at additional cost; (3)Weight:10.5–12.5 mg; (4)Ambient temperature:–40℃to +125℃ with Irms current, +85℃ to +140℃ with derated current; (5)Storage temperature Component: –40℃ to +140℃; (6)Packaging: –40℃ to +80℃.
