Product Summary

The AD8544ARZ is a high-performance CMOS Rail-to-Rail General-Purpose Amplifier.

Parametrics

AD8544ARZ Parametrics:

Packaging Tube
Amplifier Type General Purpose
Number of Circuits 4
Output Type Rail-to-Rail
Slew Rate 0.92 V/μs
Gain Bandwidth Product 1MHz
-3db Bandwidth -
Current - Input Bias 4pA
Voltage - Input Offset 1mV
Current - Supply 45μA
Current - Output / Channel 30mA
Voltage - Supply, Single/Dual (±) 2.7 V ~ 5.5 V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount

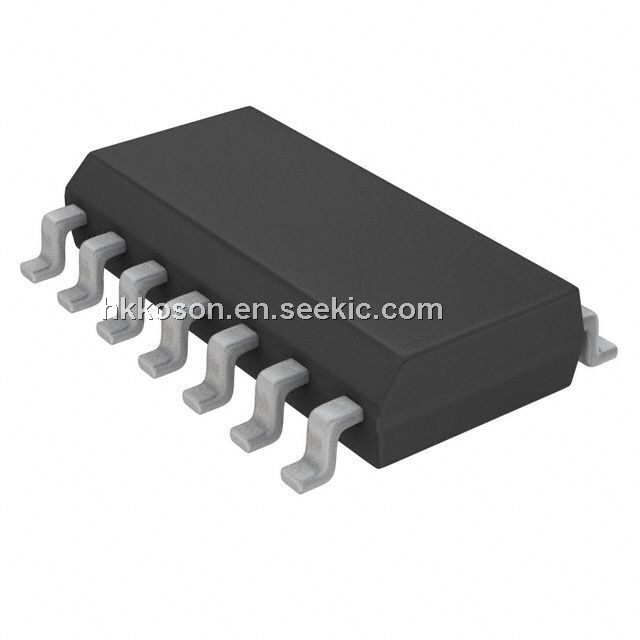

Package / Case 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package 14-SOIC
Dynamic Catalog General Purpose

Features

AD8544ARZ Features:


  • Single-supply operation: 2.7 V to 5.5 V
  • Low supply current: 45 μA/amplifier
  • Wide bandwidth: 1 MHz
  • No phase reversal
  • Low input currents: 4 pA
  • Unity gain stable
  • Rail-to-rail input and output
  • Qualified for automotive applications


Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8544ARZ
AD8544ARZ

IC OPAMP GP R-R CMOS 1MHZ 14SOIC
Data Sheet
0-1: $0.87
1-10: $0.79
10-100: $0.63
100-250: $0.56
250-500: $0.49
500-1000: $0.41
1000-2500: $0.38
2500-5000: $0.37
AD8544ARZ-REEL
AD8544ARZ-REEL

IC OPAMP GP R-R CMOS 1MHZ 14SOIC
Data Sheet
0-2500: $0.38
AD8544ARZ-REEL7
AD8544ARZ-REEL7

IC OPAMP GP R-R CMOS 1MHZ 14SOIC
Data Sheet
0-1000: $0.41
