Product Summary
The AD8602ARZ is a high-performance Precision CMOS, Single-Supply, Rail-to-Rail, Input/Output Wideband Operational Amplifiers.
Parametrics
AD8602ARZ Parametrics:
Packaging
Tube
Amplifier Type
General Purpose
Number of Circuits
2
Output Type
Rail-to-Rail
Slew Rate
6 V/μs
Gain Bandwidth Product
8.4MHz
-3db Bandwidth
-
Current - Input Bias
0.2pA
Voltage - Input Offset
80μV
Current - Supply
750μA
Current - Output / Channel
50mA
Voltage - Supply, Single/Dual (±)
2.7 V ~ 5.5 V
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount

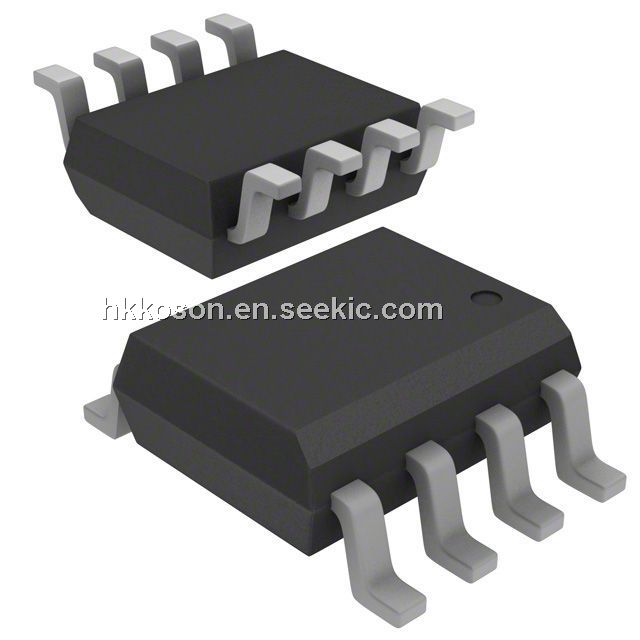

Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC N
Dynamic Catalog
General Purpose
Features
AD8602ARZ Features:
- Low offset voltage: 500 μV maximum
- Single-supply operation: 2.7 V to 5.5 V
- Low supply current: 750 μA/Amplifier
- Wide bandwidth: 8 MHz
- Slew rate: 5 V/μs
- Low distortion
- No phase reversal
- Low input currents
- Unity-gain stable
- Qualified for automotive applications
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8602ARZ |
|
IC OPAMP GP CMOS 8.4MHZ 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
AD8602ARZ-REEL |
|
IC OPAMP GP CMOS 8.4MHZ 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
AD8602ARZ-REEL7 |
|
IC OPAMP GP CMOS 8.4MHZ 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
