Product Summary

The ADG211AKN is a high-performance LC2MOS Quad SPST Switches.
The ADG211AKN  is monolithic CMOS devices.



Parametrics

ADG211AKN Parametrics:

Packaging Tube
Function Switch
Circuit 4 x SPST - NC
On-State Resistance 115 Ohm
Voltage Supply Source Dual Supply
Voltage - Supply, Single/Dual (±) ±15V
Current - Supply 600μA
Operating Temperature -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 16-DIP (0.300", 7.62mm)
Supplier Device Package 16-PDIP
Dynamic Catalog Switch

Features

ADG211AKN Features:


  • 44 V supply maximum rating
  • ±15 V analog signal range
  • Low RON: 115 Ω maximum
  • Low leakage: 0.5 nA typical
  • Break-before-make switching
  • Single supply operation possible
  • Extended plastic temperature range: ?40°C to +85°C
  • TTL/CMOS compatible
  • Pin compatible to DG211/DG212

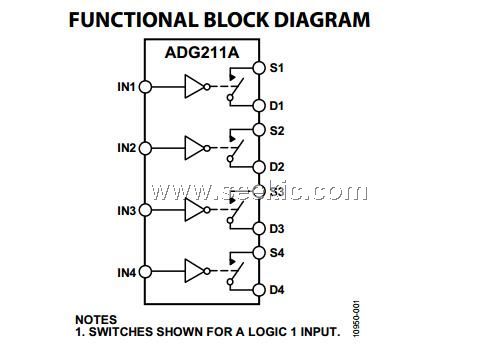

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADG211AKN
ADG211AKN

IC SWITCH QUAD SPST 16DIP
Data Sheet
0-125: $1.85
ADG211AKNZ
ADG211AKNZ

IC SWITCH QUAD SPST 16DIP
Data Sheet
0-1: $2.07
1-25: $1.66
25-100: $1.52
100-250: $1.37
250-500: $1.23
500-1000: $1.04
1000-2500: $0.99
