Product Summary
The ADS7829IDRBRG4 is a high-performance ANALOG-TO-DIGITAL CONVERTER.
Parametrics
ADS7829IDRBRG4 Parametrics:
Packaging
Tape & Reel (TR)
Number of Bits
12
Sampling Rate (Per Second)
125k
Data Interface
Serial, SPI?
Number of Converters
1
Voltage Supply Source
Single Supply
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount

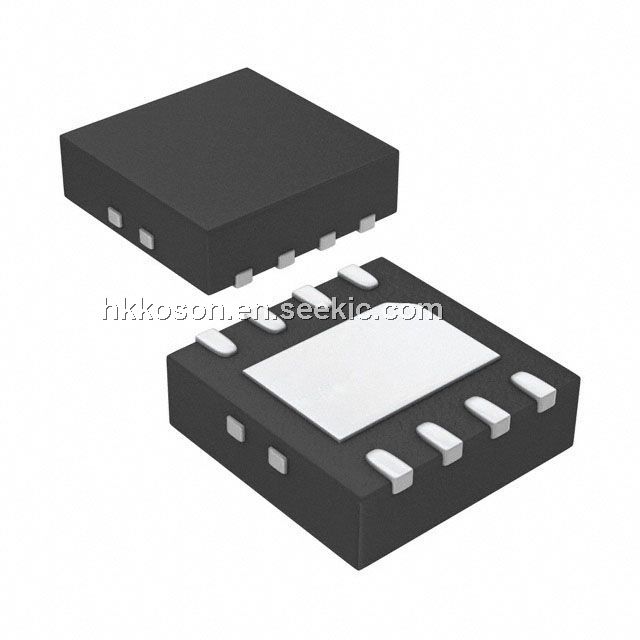

Package / Case
8-VDFN Exposed Pad
Supplier Device Package
8-SON Exposed Pad (3x3)
Number of Inputs and Type
1 Pseudo-Differential, Unipolar
For Use With
Features
ADS7829IDRBRG4 Features:
· Very Wide Operating Supply VoltageL:2.7 V to 5.25 V (as Low as 2.0 V With Reduced Performance)
· Rail-to-Rail, Pseudo Differential Input
· Wide Reference Voltage: 50 mV to VCC
· Micropower Auto Power-Down:? Less Than 60 μW at 75 kHz, 2.7 V VCC
· Low Power Down Current: 3 μA Max
· SPI? Compatible Serial Interface

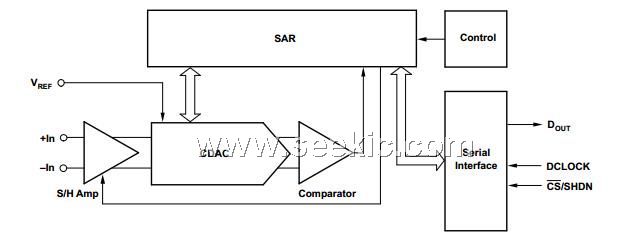

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS7829IDRBRG4 |
Texas Instruments |
ADC (A/D Converters) 12-Bit Hi-Speed 2.7V MicroPower Sampling |
Data Sheet |
|
|
||||||||||||
