Product Summary

The ATF16V8B-15SU is a high-performance Programmable Logic Device.

Parametrics

ATF16V8B-15SU Parametrics:

Packaging   Tube
Programmable Type EE PLD
Number of Macrocells 8
Voltage - Input 5V
Speed 15ns
Mounting Type Surface Mount

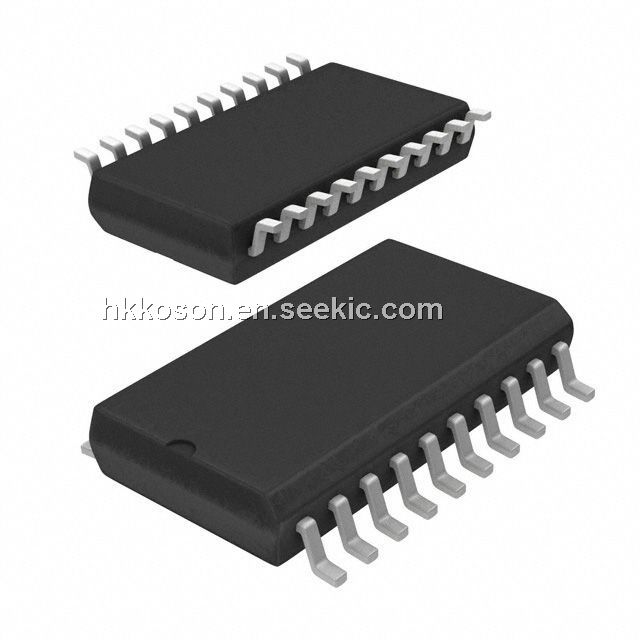

Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SOIC W
Dynamic Catalog SPLD
Other Names ATF16V8B15SU

Features

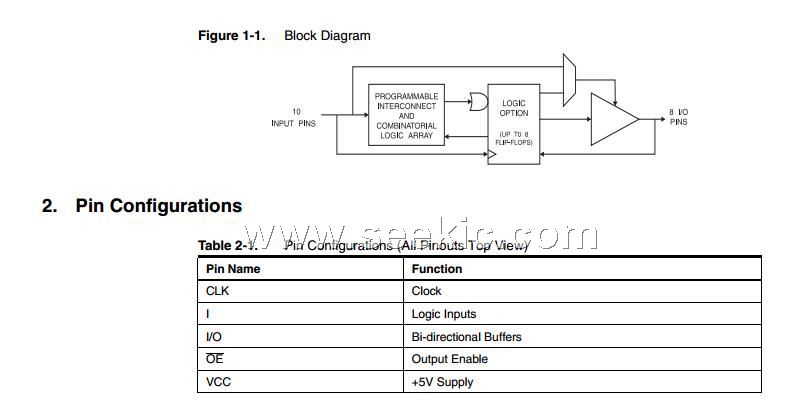

Diagrams


Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATF16V8B-15SU
ATF16V8B-15SU

Atmel

EEPLD - Electronically Erasable Programmable Logic Devices 15 ns 20 I/O Pins 8 macorcells 8 reg

Data Sheet

0-1: $0.53
1-10: $0.51
10-25: $0.48
25-100: $0.44
