Product Summary
The CA3080E is a high-performance 2MHz, Operational Transconductance Amplifier.
Parametrics
CA3080E Parametrics:
Packaging
Tube
Amplifier Type
Transconductance
Number of Circuits
1
Output Type
Push-Pull
Slew Rate
75 V/μs
Gain Bandwidth Product
2MHz
-3db Bandwidth
-
Current - Input Bias
2μA
Voltage - Input Offset
400μV
Current - Supply
1mA
Current - Output / Channel
650μA
Voltage - Supply, Single/Dual (±)
±2 V ~ 15 V
Operating Temperature
0°C ~ 70°C
Mounting Type
Through Hole
Package / Case

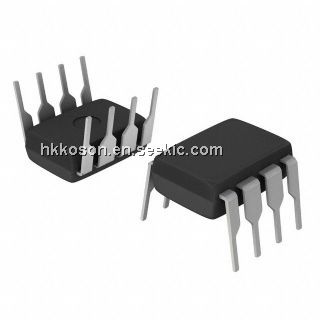

8-DIP (0.300", 7.62mm)
Supplier Device Package
8-PDIP
Features
CA3080E Features:
? Slew Rate (Unity Gain, Compensated) . . . . . . . . . 50V/μs
? Adjustable Power Consumption. . . . . . . . . . . . .10μW to 30μW
? Flexible Supply Voltage Range. . . . . . . . . . . . . ±2V to ±15V
? Fully Adjustable Gain . . . . . . . . . . . . . . . . .0 to gMRL Limit
? Extended gM Linearity . . . . . . . . . . . . . . . . . . . 3 Decades

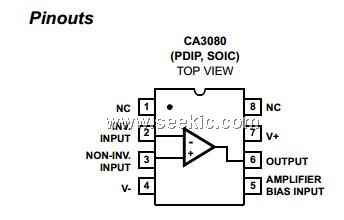

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CA3080E |
|
IC OPAMP TRANSCONDUCT 2MHZ 8-DIP |
Data Sheet |
Negotiable |
|
||||
 |
CA3080E DIP |
Other |
|
Data Sheet |
Negotiable |
|
||||
