Product Summary

The CD40106BM96 is a high-performance  Logic IC.

Parametrics

CD40106BM96 Parametrics:

Packaging   Tape & Reel (TR)
Logic Type Inverter, Buffer
Number of Circuits 6
Number of Inputs 1
Features Schmitt Trigger
Voltage - Supply 3 V ~ 18 V
Current - Quiescent (Max) 4μA
Current - Output High, Low 3.4mA, 3.4mA
Logic Level - Low 0.9 V ~ 4 V
Logic Level - High 3.6 V ~ 10.8 V
Max Propagation Delay @ V, Max CL 120ns @ 15V, 50pF
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount

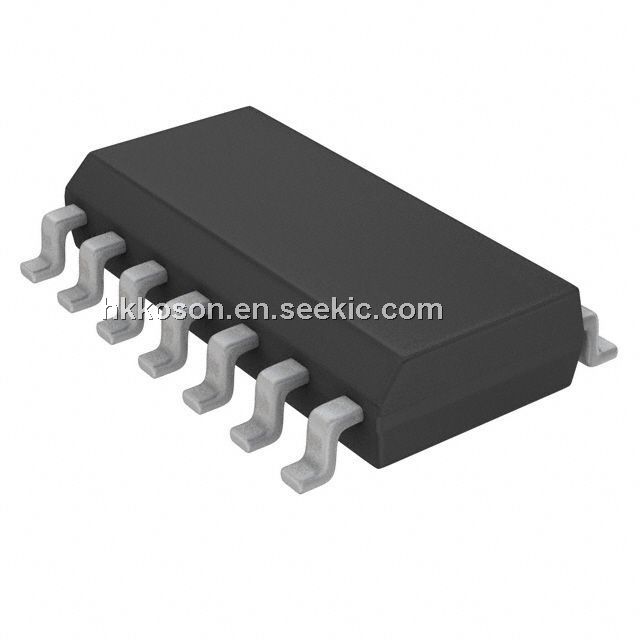

Supplier Device Package 14-SOIC
Package / Case 14-SOIC (0.154", 3.90mm Width)
Dynamic Catalog 4000B
Other Names 296-14081-2

Features


Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CD40106BM96
CD40106BM96
Texas Instruments
Inverters Hex Schmitt Trigger
Data Sheet
0-1: $0.26
1-25: $0.19
25-100: $0.17
100-250: $0.11
CD40106BM96E4
CD40106BM96E4
Texas Instruments
Inverters Hex Schmitt Trigger
Data Sheet
0-1: $0.30
1-25: $0.20
25-100: $0.18
100-250: $0.11
CD40106BM96G4
CD40106BM96G4
Texas Instruments
Inverters CMOS Hex Schmitt Triggers
Data Sheet
0-1: $0.22
1-25: $0.17
25-100: $0.15
100-250: $0.11
