Product Summary

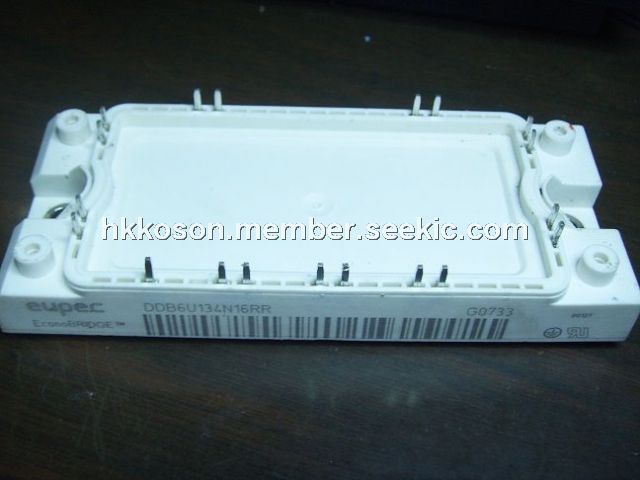

The DDB6U134N16RR is a Diode Module with Chopper-IGBT.
Parametrics
DDB6U134N16RR maximum rated values: (1)repetitive peak reverse voltage, Tvj = - 40℃ to Tvj max, VRRM: 1600 V; (2)RMS forward current (per chip), IFRMSM: 80 A; (3)output current, TC = 100℃, Id: 134 A; (4)surge forward current, Tvj = Tvj max, tp = 10ms, IFSM: 550 A; (5)I2t-value Tvj = Tvj max, tp = 10ms,I2t: 1500 A2s; (6)collector-emitter voltage, VCES: 1200 V; (7)DC-collector current, TC = 80℃, IC: 70 A; (8)repetitive peak collektor current, tp = 1ms, ICRM: 150 A; (9)total power dissipation, TC = 25℃, Ptot: 500 W; (10)Gatgate-emitter peak voltage, VGE: ± 20 V; (11)repetitive peak reverse voltage, VRRM: 1200 V; (12)DC forward current, TC = 80℃, IF: 35 A; (13)repetitive peak forward current, tp = 1ms, IFRM: 70 A; (14)insulation test voltage, f = 50Hz, t = 1min NTC connected to baseplate, VISOL: 2,5 kV.
Features
DDB6U134N16RR features: (1)Manufacturer: INFINEON(EUPEC); (2)Ic: 130A; (3)Vces: 1600V; (4)Type: Diode Modules; (5)Condition: New in original; (6)ROHS: Yes; (7)Weight: 200g.

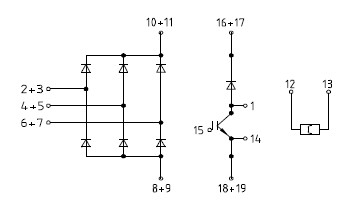

Diagrams
