Product Summary

The DG611DJ features high-speed low capacitance lateral DMOS switches. Charge injection has been minimized to optimize

performance in fast sample-andhold applications.

Parametrics

DG611DJ Parametrics:

Packaging Tube
Function Switch
Circuit 4 x SPST - NC
On-State Resistance 45 Ohm
Voltage Supply Source Single, Dual Supply
Voltage - Supply, Single/Dual (±) 10 V ~ 18 V, ±10 V ~ 15 V
Current - Supply 1μA
Operating Temperature -40°C ~ 85°C
Mounting Type Through Hole
Package/Case 16-DIP (0.300", 7.62mm)
Supplier Device Package 16-PDIP

Features

DG611DJ Features:


  • Fast switching - tON: 12 ns
  • Low charge injection: ± 2 pC
  • Wide bandwidth: 500 MHz
  • 5 V CMOS logic compatible
  • Low RDS(on): 18 Ω
  • Low quiescent power : 1.2 nW
  • Single supply operation


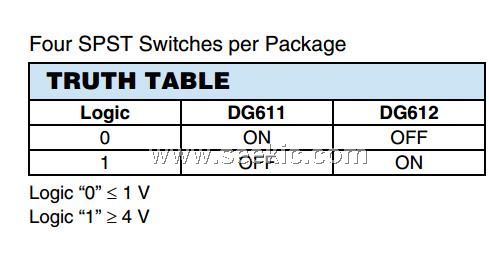

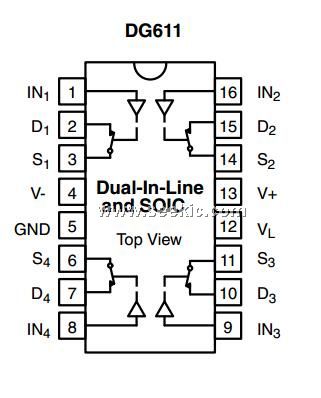

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

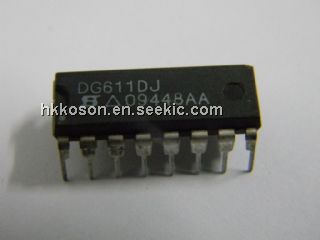

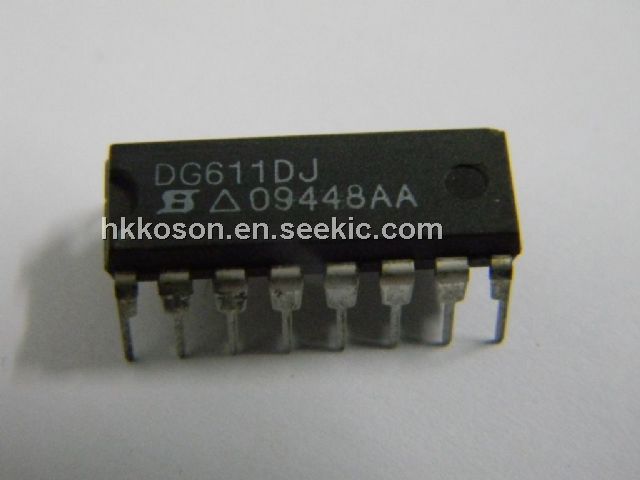

DG611DJ
DG611DJ
Vishay/Siliconix
Analog Switch ICs High-Speed Switch
Data Sheet
0-290: $2.14
290-500: $1.97
500-1000: $1.91
1000-2000: $1.75
