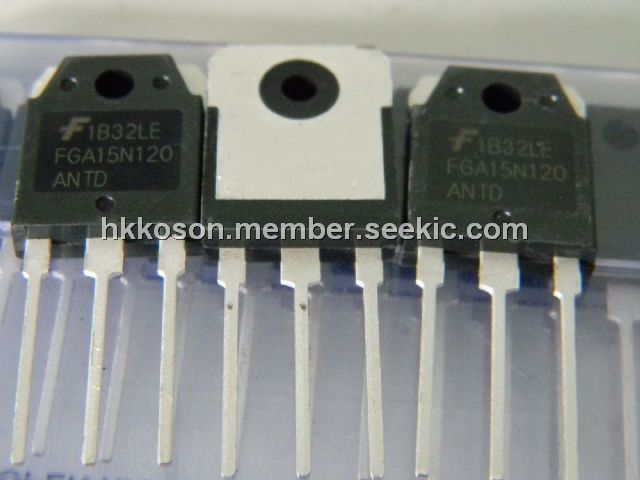

FGA15N120

1200V NPT Trench IGBT, TO-3P, 15A, 0.6mJ, 186 W, FGA15N120

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.89~0.92 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.89~0.92

PartNumber:: FGA15N120

Brand:: Fairchild Semiconductor - Fairchild | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Winnie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-16

From Other Seller

Part Number:FGA15N120
US $0.89 - 0.92
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The FGA15N120 is a 1200V NPT Trench IGBT. It uses Fairchild proprietary trench design and advanced NPT technology, the FGA15N120 offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation. The FGA15N120 is well suited for the resonant or soft switching application such as induction heating, microwave oven, etc.

Parametrics

FGA15N120 absolute maximum ratings: (1)VCES Collector-Emitter Voltage: 1200 V; (2)VGES Gate-Emitter Voltage: ±20 V; (3)IC Collector Current @ TC = 25℃: 30 A; Collector Current @ TC = 100℃: 15 A; (4)ICM Pulsed Collector Current: 45 A; (5)IF Diode Continuous Forward Current @ TC = 100℃: 15 A; (6)IFM Diode Maximum Forward Current: 45 A; (7)PD Maximum Power Dissipation @ TC = 25℃: 186 W; Maximum Power Dissipation @ TC = 100℃: 74 W; (8)TJ Operating Junction Temperature: -55 to +150 ℃; (9)Tstg Storage Temperature Range: -55 to +150 ℃; (10)TL Maximum Lead Temp. for soldering Purposes, 1/8 from case for 5 seconds: 300 ℃.

Features

FGA15N120 features: (1)NPT Trench Technology, Positive temperature coefficient; (2)Low saturation voltage: VCE(sat), typ = 1.9V @ IC = 15A and TC = 25℃; (3)Low switching loss: Eoff, typ = 0.6mJ @ IC = 15A and TC = 25℃; (4)Extremely enhanced avalanche capability.
