Product Summary
The ICE2BS01 is a high-performance Power Management IC.
Parametrics
ICE2BS01 Parametrics:
Packaging
Tube
Output Isolation
Isolated
Frequency Range
62kHz ~ 72kHz
Voltage - Input
8.5 V ~ 22 V
Voltage - Breakdown
-
Voltage - Output
-
Power (Watts)
-
Operating Temperature
-40°C ~ 150°C

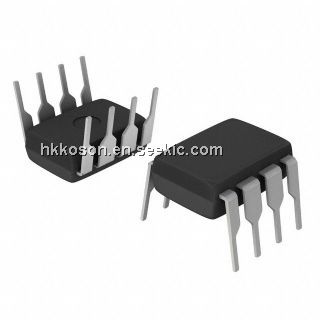

Package / Case
8-DIP (0.300", 7.62mm)
Supplier Device Package
P-DIP-8
Other Names
ICE2BS01X
ICE2BS01X-ND
ICE2BS01XK
SP000013766
Features
ICE2BS01 Features:
? Only few external Components required
? Input Undervoltage Lockout
? 67kHz/100kHz fixed Switching Frequency
? Max Duty Cycle 72%
? Low Power Standby Mode to support“Blue Angel” Norm
? Latched Thermal Shut Down
? Overload and Open Loop Protection
? Overvoltage Protection during Auto Restart
? Adjustable Peak Current Limitation via External Resistor
? Overall Tolerance of Current Limiting < ±5%
? Internal Leading Edge Blanking
? Soft Start
? Soft gate driving for Low EMI
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ICE2BS01 |
Infineon Technologies |
Primary & Secondary Side PWM Controllers OFF-LINE SMPS CRRNT MODE CONTROLLER |
Data Sheet |
Negotiable |
|
||||
 |
ICE2BS01GNT |
Infineon Technologies |
Primary & Secondary Side PWM Controllers OFF LINE SMPS CURRENT MODE CTRLR |
Data Sheet |
Negotiable |
|
||||
|
ICE2BS01G |
Infineon Technologies |
Primary & Secondary Side PWM Controllers OFF-LINE SMPS CRRNT MODE CONTROLLER |
Data Sheet |
Negotiable |
|
||||
