Product Summary

The ICE3BR0665J is a high-performance Off-Line SMPS Current Mode Controller.

Parametrics

ICE3BR0665J Parametrics:

Packaging Tube
Output Isolation Isolated
Frequency Range 56.5kHz ~ 73.5kHz
Voltage - Input 10.5 V ~ 27 V
Voltage - Breakdown 650V
Voltage - Output -
Power (Watts) 74W
Operating Temperature -25°C ~ 130°C

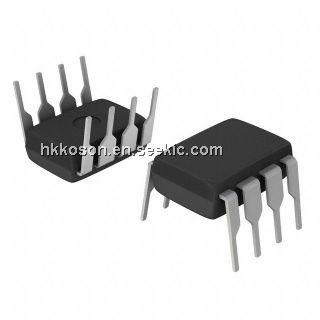

Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package PG-DIP-8
Other Names ICE3BR0665JFKLA1
SP000417880

Features

ICE3BR0665J Features:

? 650V avalanche rugged CoolMOS? with built-in Startup Cell
? Active Burst Mode for lowest Standby Power
? Fast load jump response in Active Burst Mode
? 65kHz internally fixed switching frequency
? Auto Restart Protection Mode for Overload, Open Loop, VCC Undervoltage,Overtemperature & Overvoltage
? Built-in Soft Start
? Built-in blanking window with extendable blanking time for short duration high current
? External auto-restart enable pin
? Max Duty Cycle 75%
? Overall tolerance of Current Limiting < ±5%
? Internal PWM Leading Edge Blanking
? BiCMOS technology provide wide VCC range
? Built-in Frequency jitter and soft driving for low EMI

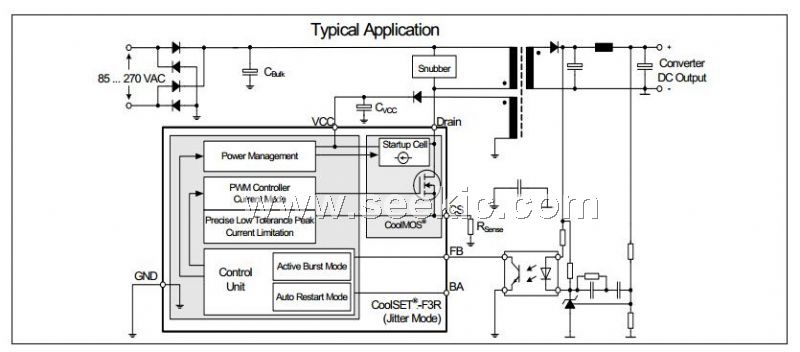

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ICE3BR0665J
ICE3BR0665J
Infineon Technologies
Current Mode PWM Controllers Off-Line SMPS Crrnt Mode 650V
Data Sheet
0-1: $2.02
1-10: $1.81
10-100: $1.48
100-500: $1.19
ICE3BR0665JF
ICE3BR0665JF
Infineon Technologies
Current Mode PWM Controllers SMPS IC'S
Data Sheet
0-1: $1.82
1-10: $1.64
10-100: $1.32
100-250: $1.03
ICE3BR0665JZ
ICE3BR0665JZ
Infineon Technologies
Current Mode PWM Controllers COOLSET
Data Sheet
0-1390: $0.67
1390-2000: $0.62
2000-5000: $0.59
