Product Summary
The ICE3BR1065JF is a CoolSET?-F3R FullPak. This CoolSET?-F3R FullPak is the enhanced version of CoolSET ?-F3 and
targets for the Off-Line Adapters and high power range SMPS in DVD R/W, DVD Combi, set top box, etc. It has a wide Vcc
range to 25V by adopting the BiCMOS technology.
Parametrics
ICE3BR1065JF Parametrics:
Packaging
Tube
Output Isolation
Isolated
Frequency Range
58kHz ~ 75kHz
Voltage - Input
10.5 V ~ 27 V
Voltage - Breakdown
650V
Voltage - Output
-
Power (Watts)
28W
Operating Temperature
-40°C ~ 150°C
Package / Case
TO-220-6 Full Pack, Formed Leads
Supplier Device Package
PG-TO220-6
Other Names
ICE3BR1065JFXKSA2
SP000366369
SP000842986
Features
ICE3BR1065JF Features:
? 650V avalanche rugged CoolMOS?with built-in Startup Cell
? Active Burst Mode for lowest Standby Power
? Fast load jump response in Active Burst Mode
? 67kHz internally fixed switching frequency
? Auto Restart Protection Mode for Overload,Open Loop, VCC Undervoltage, Overtemperature & Overvoltage
? Built-in Soft Start
? Built-in blanking window with extendable blanking time for short duration high current
? External auto-restart enable pin
? Max Duty Cycle 75%
? Overall tolerance of Current Limiting < ±5%
? Internal PWM Leading Edge Blanking
? BiCMOS technology provide wide VCC range
? Built-in Frequency jitter and soft driving for low EMI

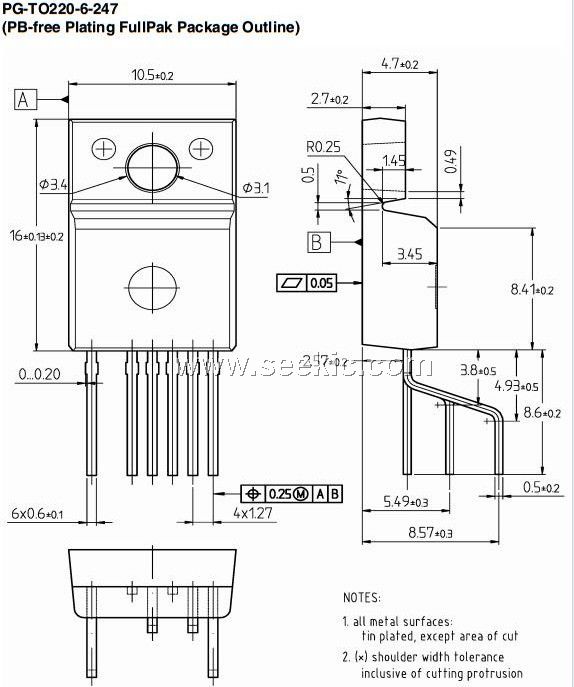

Diagrams
