Product Summary

The IDT49FCT805SO is a high-performance FAST CMOS BUFFER.

Parametrics

IDT49FCT805SO Parametrics:

Packaging Tube
Type Fanout Buffer (Distribution)
Number of Circuits 2
Ratio - Input:Output 1:5
Differential - Input:Output No/No
Input CMOS, LVTTL
Output CMOS, LVTTL
Frequency - Max -
Voltage - Supply 4.75 V ~ 5.25 V
Operating Temperature 0°C ~ 70°C
Mounting Type Surface Mount

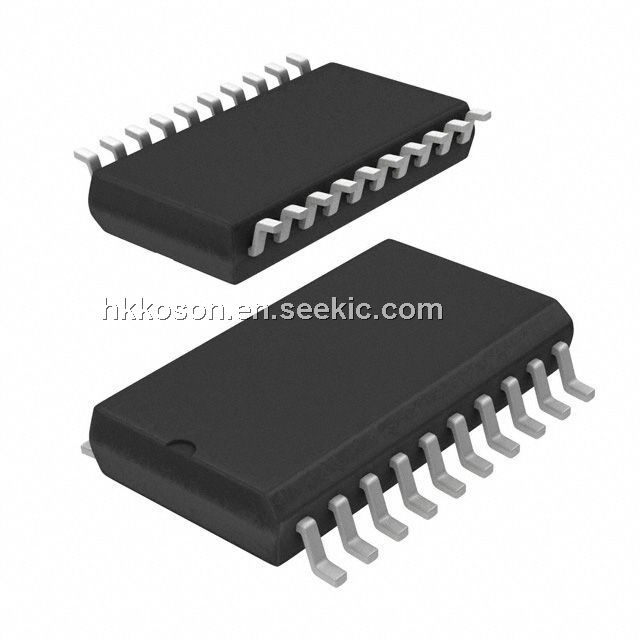

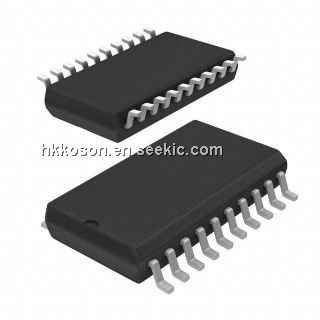

Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SOIC
Other Names 49FCT805SO

Features

IDT49FCT805SO Features:

? 0.5 MICRON CMOS Technology
? Guaranteed low skew < 700ps (max.)
? Low duty cycle distortion < 1ns (max.)
? Low CMOS power levels
? TTL compatible inputs and outputs
? Rail-to-rail output voltage swing
? High drive: -24mA IOH, +64mA IOL
? Two independent output banks with 3-state control
? 1:5 fanout per bank
? "Heartbeat" monitor output

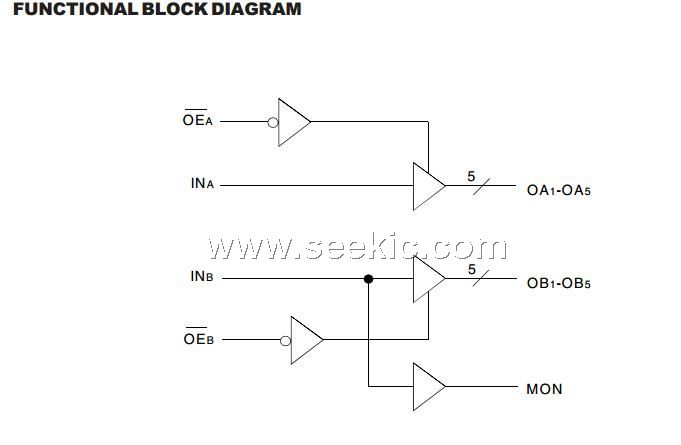

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IDT49FCT805SO
IDT49FCT805SO

IC CLK BUFFER 1:5 80MHZ 20-SOIC
Data Sheet
Negotiable
IDT49FCT805SO8
IDT49FCT805SO8

IC CLK BUFFER 1:5 80MHZ 20-SOIC
Data Sheet
Negotiable
IDT49FCT805SOG8
IDT49FCT805SOG8

IC CLK BUFFER 1:5 80MHZ 20-SOIC
Data Sheet
0-1000: $1.41
IDT49FCT805SOGI
IDT49FCT805SOGI

IC CLK BUFFER 1:5 80MHZ 20-SOIC
Data Sheet
0-481: $3.12
IDT49FCT805SOGI8
IDT49FCT805SOGI8

IC CLK BUFFER 1:5 80MHZ 20-SOIC
Data Sheet
0-1000: $2.48
IDT49FCT805SOG
IDT49FCT805SOG

IC CLOCK BUFFER 1:5 80MHZ 20SOIC
Data Sheet
0-1: $2.83
1-25: $2.27
25-100: $2.07
100-250: $1.87
250-500: $1.68
500-1000: $1.41
1000-2500: $1.34
2500-5000: $1.29
5000-10000: $1.25
IDT49FCT805SOI
IDT49FCT805SOI

IC CLK BUFFER 1:5 80MHZ 20-SOIC
Data Sheet
Negotiable
IDT49FCT805SOI8
IDT49FCT805SOI8

IC CLK BUFFER 1:5 80MHZ 20-SOIC
Data Sheet
Negotiable
