Product Summary

The IP4776CZ38 is a high-performance Fully integrated HDMI interface with level shifter, ESD and backdrive protection.

Parametrics

IP4776CZ38 Parametrics:

Packaging Tape & Reel (TR)
Applications Digital TV, Displays, Digital KVM, Graphics Processing
Interface HDMI
Voltage - Supply 3.3V, 5V

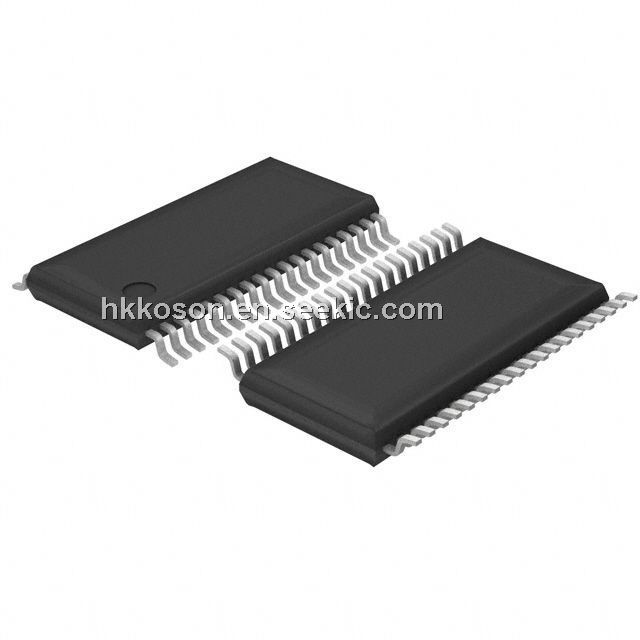

Package / Case 38-TFSOP (0.173", 4.40mm Width)
Supplier Device Package 38-TSSOP
Mounting Type Surface Mount
Other Names 568-5880-2
934059868118
IP4776CZ38 /T3
IP4776CZ38 /T3-ND
IP4776CZ38,118-ND
IP4776CZ38118

Features

IP4776CZ38 Features:


  • ? Pb-free and RoHS compliant, Dark Green
  • ? Integrated high-level ESD protection, level shifting and backdrive protection
  • ? All TMDS lines with integrated rail-to-rail clamping diodes with downstream ESD protection of ±8 kV according to


IEC 61000-4-2, level 4 standard


  • ? Matched 0.5 mm trace spacing
  • ? Bidirectional level shifting N-channel FETs provided for DDC clock and data channels
  • ? TMDS lines with ≤ 0.05 pF matching of capacitance between the TMDS pairs
  • ? Ultra low line capacitance of 0.7 pF per channel
  • ? HDMI 1.3 compliant
  • ? Backdrive protection
  • ? 38-pin TSSOP lead-free package

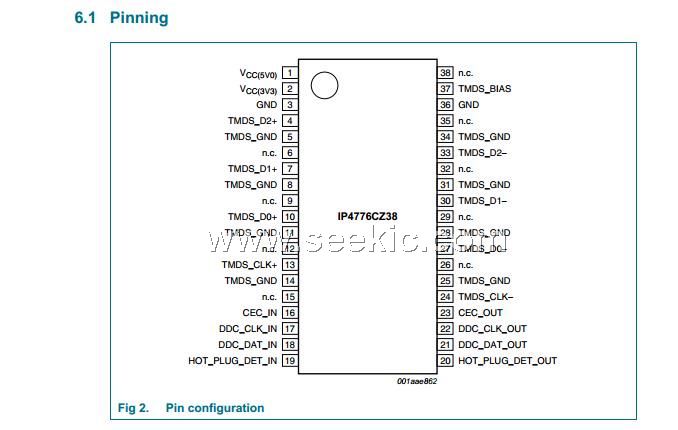

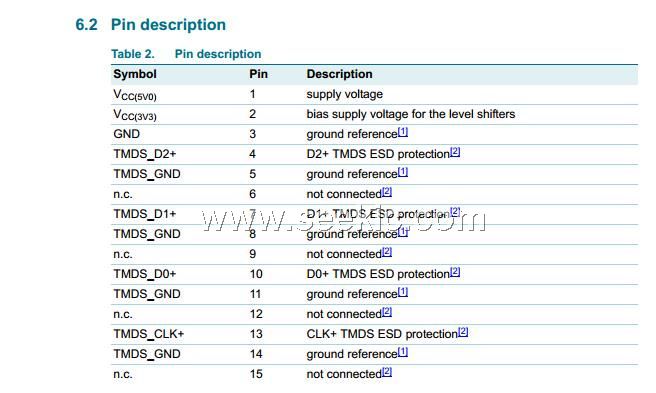

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IP4776CZ38
IP4776CZ38

Other


Data Sheet

Negotiable
IP4776CZ38,118
IP4776CZ38,118

NXP Semiconductors

ESD Suppressors HDMI INTERFACE W/ESD

Data Sheet

0-1: $0.74
1-25: $0.67
25-100: $0.59
100-250: $0.51
